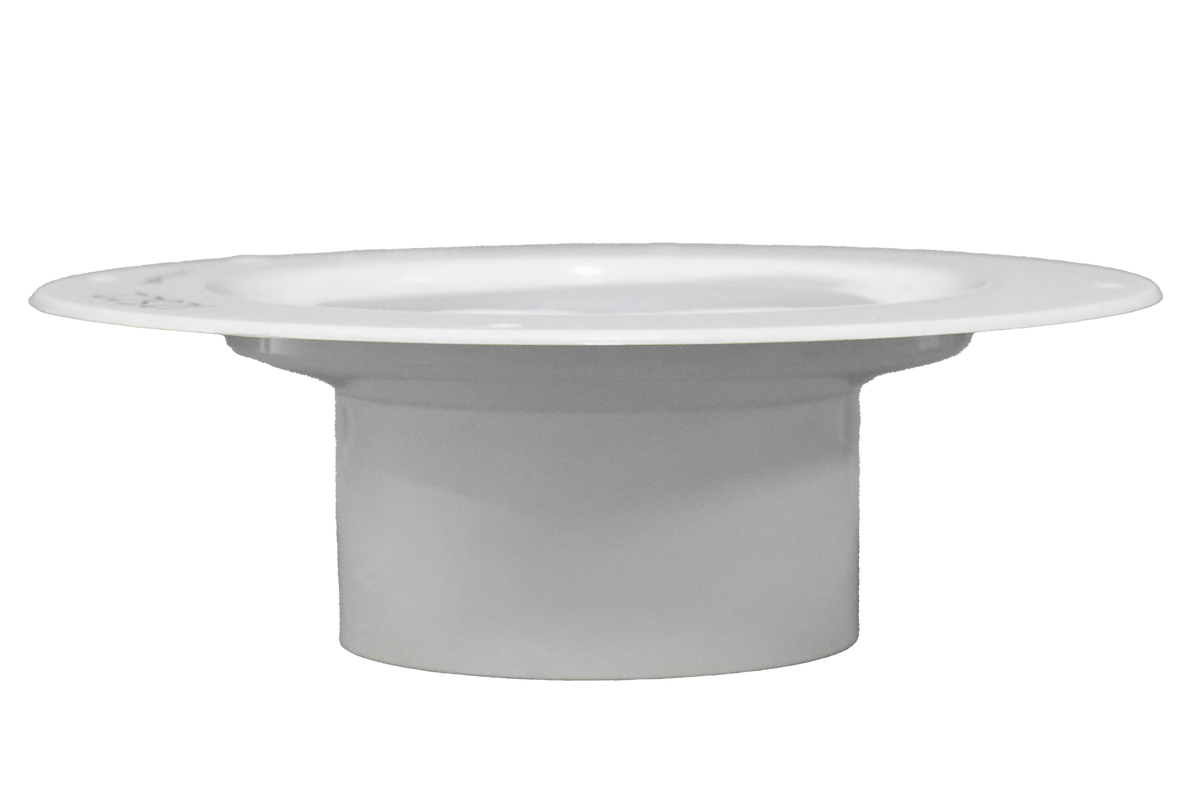

BAT Luxe Recessed Round Puddle Flange
BAT
BAT Luxe Recessed Round Puddle Flange
Fits: Sits under the floor waste: 100 x 100 for 100 mm drains, 80 x 80 for 80 mm drains, 80 x 50 for 50 mm drains See what fits
Pickup available at Excellent Tiling Services - Maddington
Usually ready in 24 hours
- Australia Post from $9.95Tracked post anywhere in Australia, priced by parcel weight: up to 250 g $9.95, 500 g $11.95, 1 kg $15, 3 kg $20. Or pick up free from Maddington.
- See it in the showroom17A Olga Road, Maddington WA 6109 · by appointment · Book a visit
- 30-day change-of-mind returnsUnused, uninstalled and in original packaging. Returns policy
- Questions about fit or finish?Call 0450 960 543 or send us a message.
The BAT Luxe Recessed Round Puddle Flange is the plastic flange that sits under the floor waste and gives the waterproofing membrane something to bond to. The membrane is dressed into the recess and sealed to the flange, so water under the tile is led into the waste, not the slab. Three sizes to suit 50, 80 and 100 mm drains.
Use it for
- Shower and bathroom floors being waterproofed before tiling
- Any floor waste in a wet area that needs the membrane tied in
Features
- Recessed round flange that the membrane laps into
- Plastic, so it will not corrode in the slab
Specifications
- 100 x 100 mm, for 100 mm drains (BL-RPF100100R)

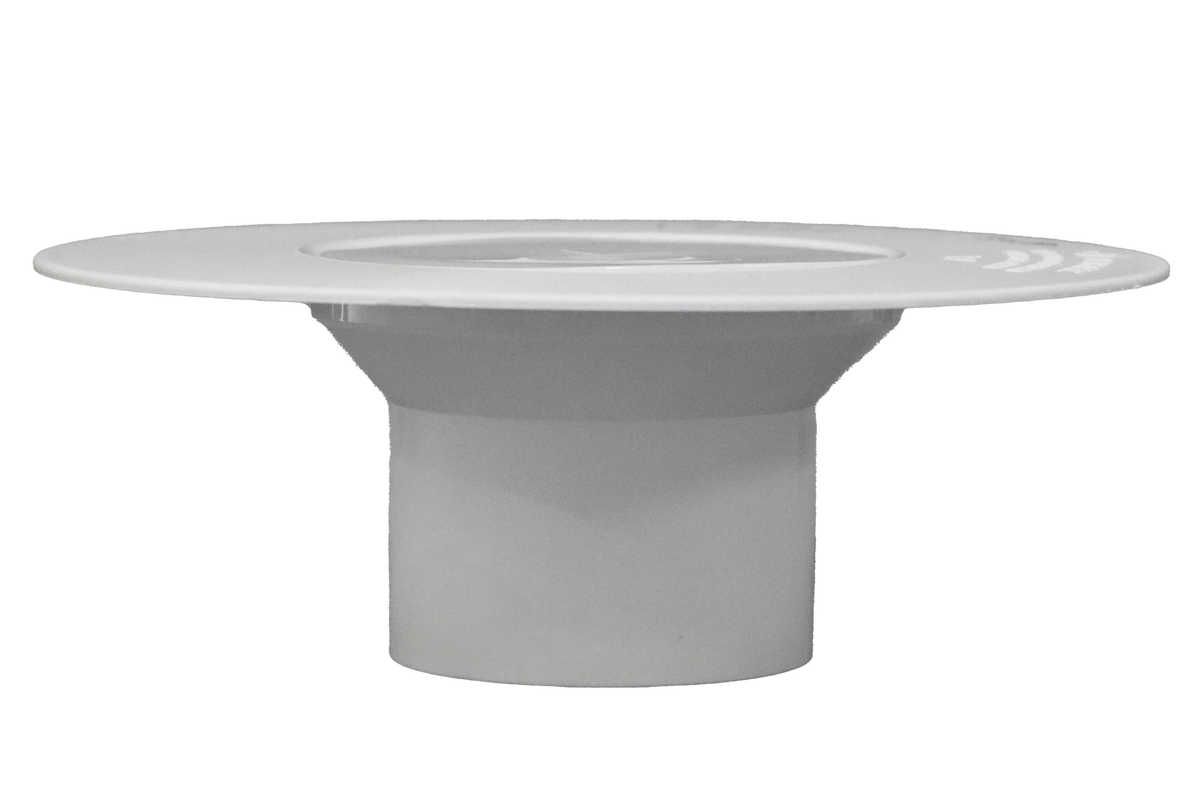

- 80 x 80 mm, for 80 mm drains (BL-RPF8080R)

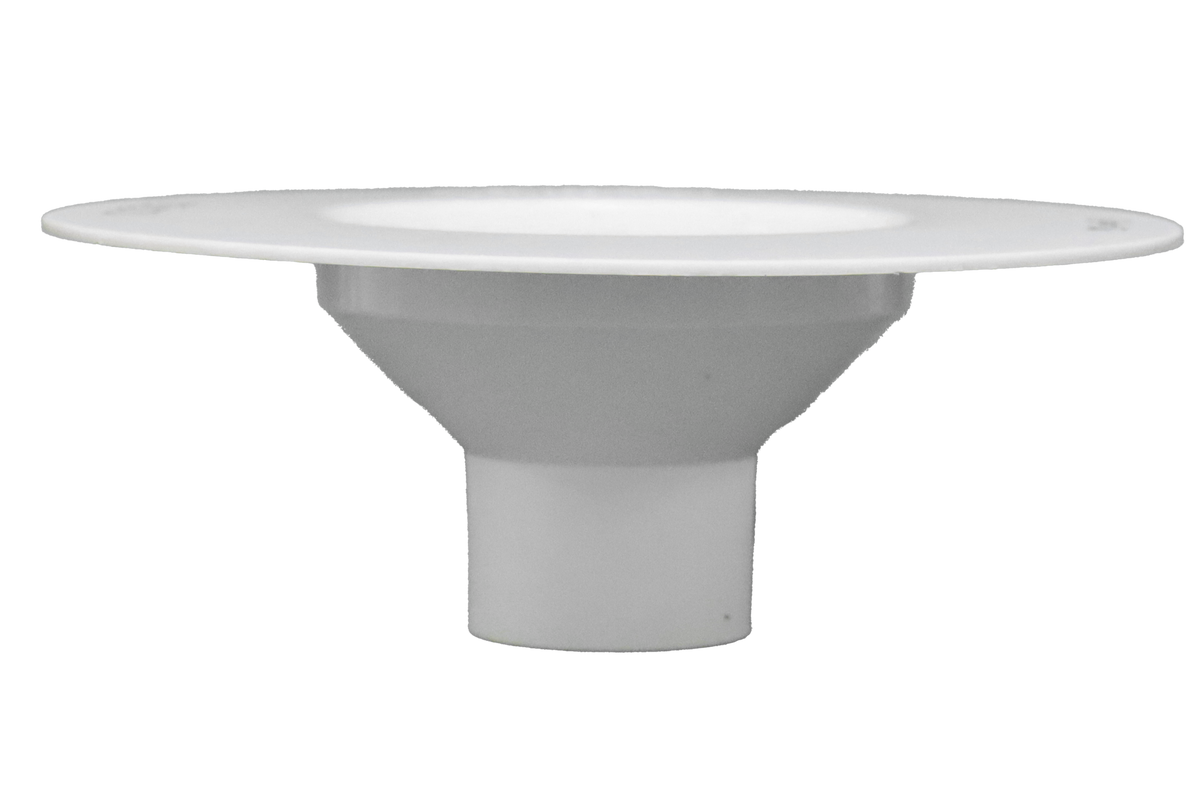

- 80 x 50 mm, for 50 mm drains (BL-RPF8050R)
Fits
- Sits under the floor waste on the pipe: match the second number to your drain outlet size
Good to know
- Fit the flange before waterproofing, level with or just below the screed
- Follow the membrane maker's instructions for dressing the membrane into the flange and use bond breaker where they call for it
- Puddle flanges are part of the waterproofing system in Australian wet areas
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
Compatible machines and tools
What this fits
Sits under the floor waste: 100 x 100 for 100 mm drains, 80 x 80 for 80 mm drains, 80 x 50 for 50 mm drains
-
BATBAT Chrome Plated Floor Drain - 100mm with PVC Collar
$23.60 -

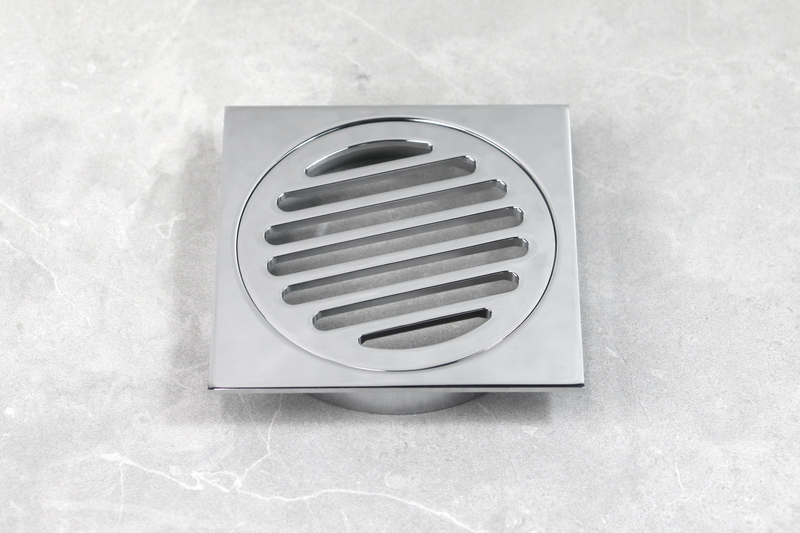

BATBAT Chrome Plated Floor Drain 100mm
$28.95 -
BATBAT Floor Drain 100mm - Matt Black
$35.95 -
BATBAT Chrome Plated Floor Drain 80mm
2 options available$20.95 -
BATBAT Chrome Plated Long Collar Square Floor Drain - 80mm
$32.95 -
BATBAT Chrome Plated Floor Drain 50mm
2 options available$13.00
Details & specifications
Need help choosing or confirming fit? Talk to our Maddington showroom or call 0450 960 543.
Specifications
- Brand
- BAT
- Product type
- Floor Drains
- Size
- 100 x 100mm, 80 x 50mm, 80 x 80mm
| Option | Product code | Barcode |
|---|---|---|
| 100 x 100mm | BL-RPF100100R | |
| 80 x 50mm | BL-RPF8050R | |
| 80 x 80mm | BL-RPF8080R |
