Expansion Aluminium Trim – 3m Lengths
Roberts Designs
Expansion Aluminium Trim – 3m Lengths
Pickup available at Excellent Tiling Services - Maddington
Usually ready in 24 hours
- Perth metro deliveryLocal delivery options show at checkout, or choose free pickup from Maddington. Outside Perth? Ask for a freight quote.
- See it in the showroom17A Olga Road, Maddington WA 6109 · by appointment · Book a visit
- 30-day change-of-mind returnsUnused, uninstalled and in original packaging. Returns policy
- Questions about fit or finish?Call 0450 960 543 or send us a message.

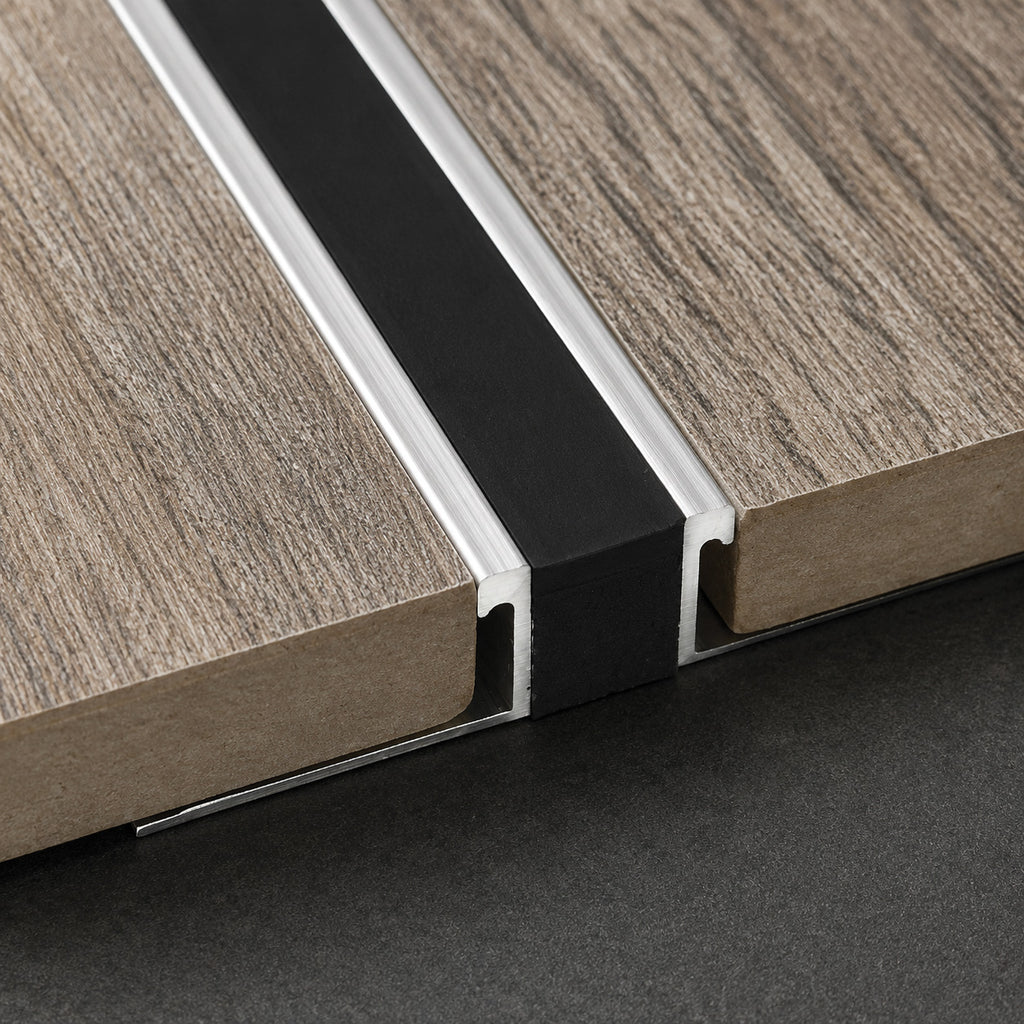

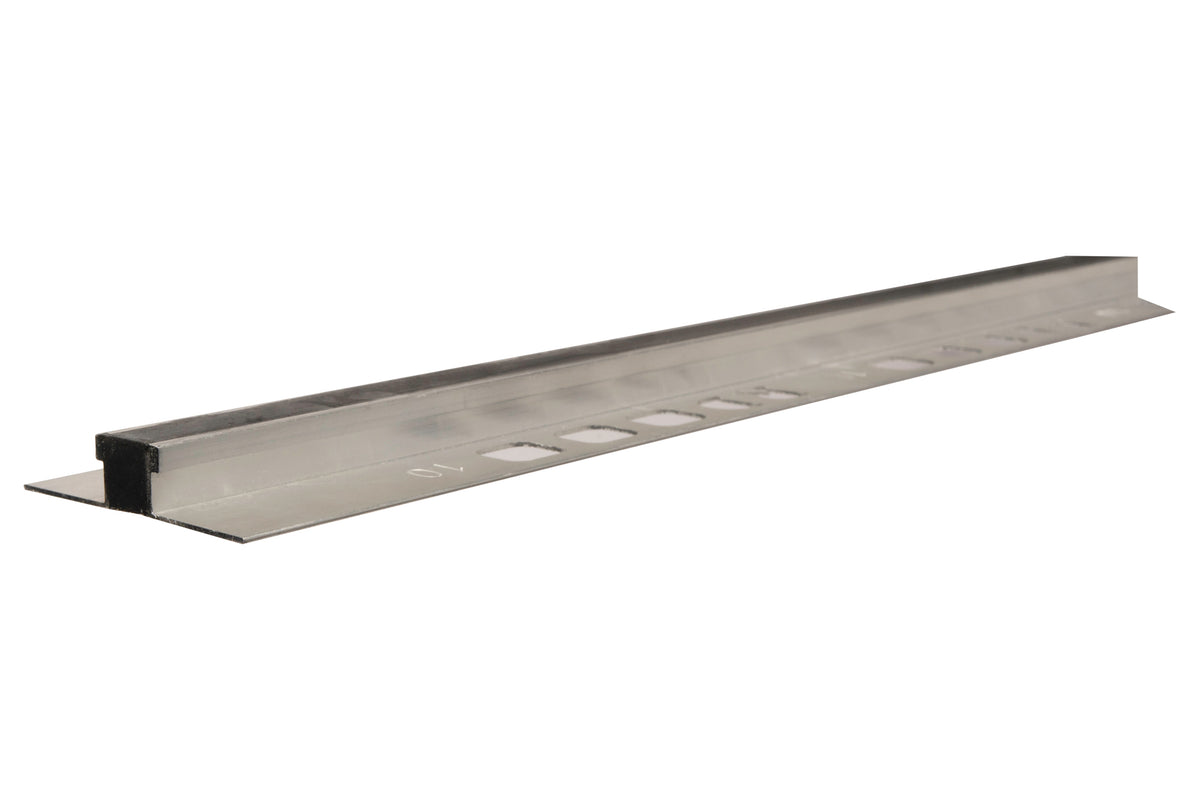

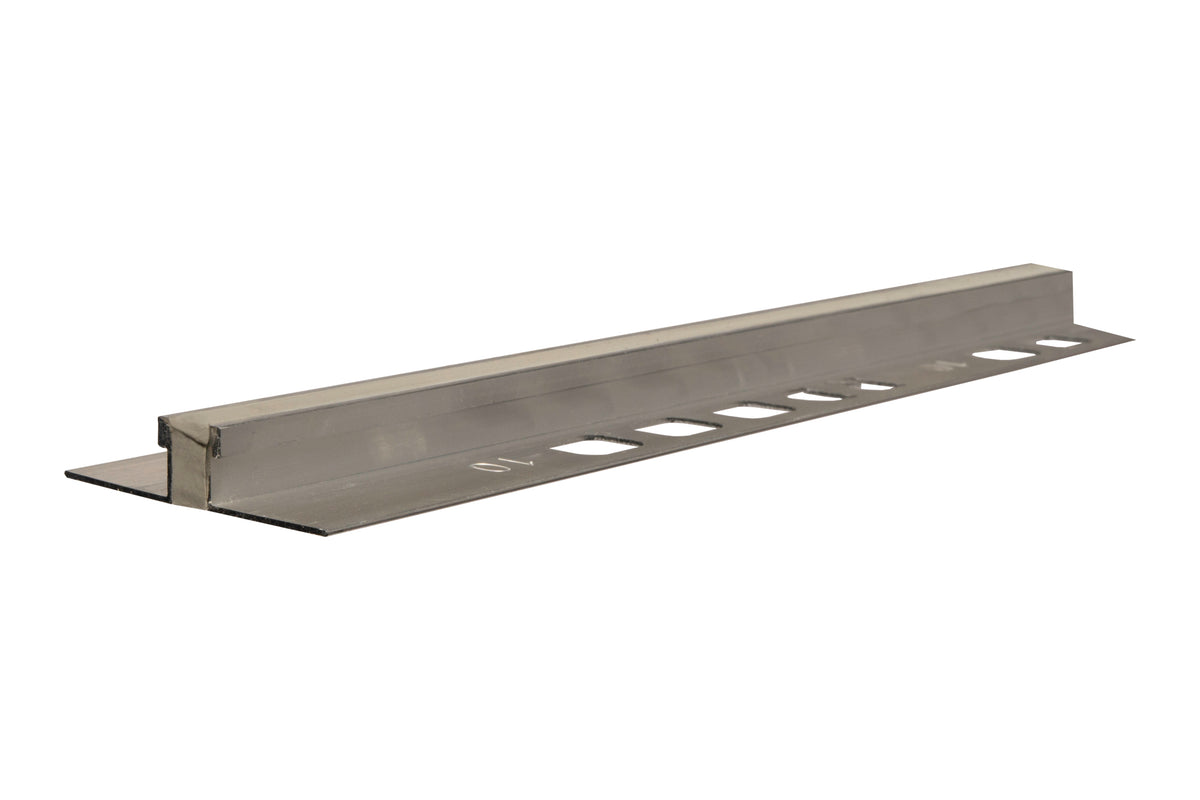

Roberts Designs Expansion Aluminium Trim is a ready made movement joint for tiled floors: two aluminium edges with a neutral cure silicone infill that stretches and recovers as the floor moves, so tiles do not crack. 3m lengths, grey or black infill.
Use it for
- Movement joints in large tiled floors and at changes of direction
- Doorways, junctions between rooms, balconies and external paving
Specifications
- Material: Aluminium
- Grade: 6063
- Temper: T5
- Finish: Mill
- Infill: Neutral cure silicone
- Movement capability: 25 percent
- Shore A hardness: about 30
- Tensile expansion: about 600 percent
- Stress expansion modulus: about 0.5 N/mm2 at 100 percent
- Length: 3m
- Sizes (height x infill width): 8, 10, 11, 12, 15, 18 or 22mm high, with a 6mm or 10mm wide joint
- Infill colours: Grey or Black
- Model: RDTT899gr (11mm x 10mm Grey); see options for the full code list
Good to know
- Match the height to tile thickness plus adhesive.
- Australian tiling standards call for movement joints at set spacings and at perimeters.
- Wet adhesive and grout are highly alkaline and will etch aluminium if left sitting on the trim. Wipe the trim clean as you go and change your bucket water often.
Details & specifications
Need help choosing or confirming fit? Talk to our Maddington showroom or call 0450 960 543.
Specifications
- Brand
- Roberts Designs
- Product type
- Expansion Trim
- Size
- 11mm x 10mm wide, 11mm x 6mm wide, 15mm x 6mm wide, 22mm x 10mm wide, 12mm x 6mm wide, 18mm x 10mm wide, 10mm x 6mm wide, 15mm x 10mm wide, 8mm x 6mm wide, 12mm x 10mm wide, 10mm x 10mm wide, 8mm x 10mm wide, 22mm x 6mm wide, 18mm x 6mm wide
- Colour
- Grey, Black
| Option | Product code | Barcode |
|---|---|---|
| 11mm x 10mm wide / Grey | RDTT899gr | |
| 11mm x 10mm wide / Black | RDTT900b | |
| 11mm x 6mm wide / Grey | RDTT897gr | |
| 11mm x 6mm wide / Black | RDTT898b | |
| 15mm x 6mm wide / Black | RDTT827b | |
| 22mm x 10mm wide / Grey | RDTT842gr | |
| 12mm x 6mm wide / Black | RDTT825b | |
| 18mm x 10mm wide / Grey | RDTT840gr | |
| 10mm x 6mm wide / Black | RDTT823b | |
| 15mm x 10mm wide / Grey | RDTT838gr | |
| 8mm x 6mm wide / Black | RDTT821b | |
| 12mm x 10mm wide / Grey | RDTT836gr | |
| 22mm x 10mm wide / Black | RDTT843b | |
| 10mm x 10mm wide / Grey | RDTT834gr | |
| 18mm x 10mm wide / Black | RDTT841b | |
| 8mm x 10mm wide / Grey | RDTT832gr | |
| 15mm x 10mm wide / Black | RDTT839b | |
| 22mm x 6mm wide / Grey | RDTT830gr | |
| 12mm x 10mm wide / Black | RDTT837b | |
| 18mm x 6mm wide / Grey | RDTT828gr | |
| 10mm x 10mm wide / Black | RDTT835b | |
| 15mm x 6mm wide / Grey | RDTT826gr | |
| 8mm x 10mm wide / Black | RDTT833b | |
| 12mm x 6mm wide / Grey | RDTT824gr | |
| 22mm x 6mm wide / Black | RDTT831b | |
| 10mm x 6mm wide / Grey | RDTT822gr | |
| 18mm x 6mm wide / Black | RDTT829b | |
| 8mm x 6mm wide / Grey | RDTT820gr |
