Sigma Pro Grip Suction Cup ART51M3 mm for straight bar of Kera Lift 1A6 – 1D3 160mm dia
Sigma
Sigma Pro Grip Suction Cup ART51M3 mm for straight bar of Kera Lift 1A6 – 1D3 160mm dia
Fits: Sigma Kera Lift 1A6 to 1D3 (straight bar) See what fits
Pickup available at Excellent Tiling Services - Maddington
Usually ready in 24 hours
- Australia Post from $20Tracked post anywhere in Australia, priced by parcel weight: up to 250 g $9.95, 500 g $11.95, 1 kg $15, 3 kg $20. Or pick up free from Maddington.
- See it in the showroom17A Olga Road, Maddington WA 6109 · by appointment · Book a visit
- 30-day change-of-mind returnsUnused, uninstalled and in original packaging. Returns policy
- Questions about fit or finish?Call 0450 960 543 or send us a message.

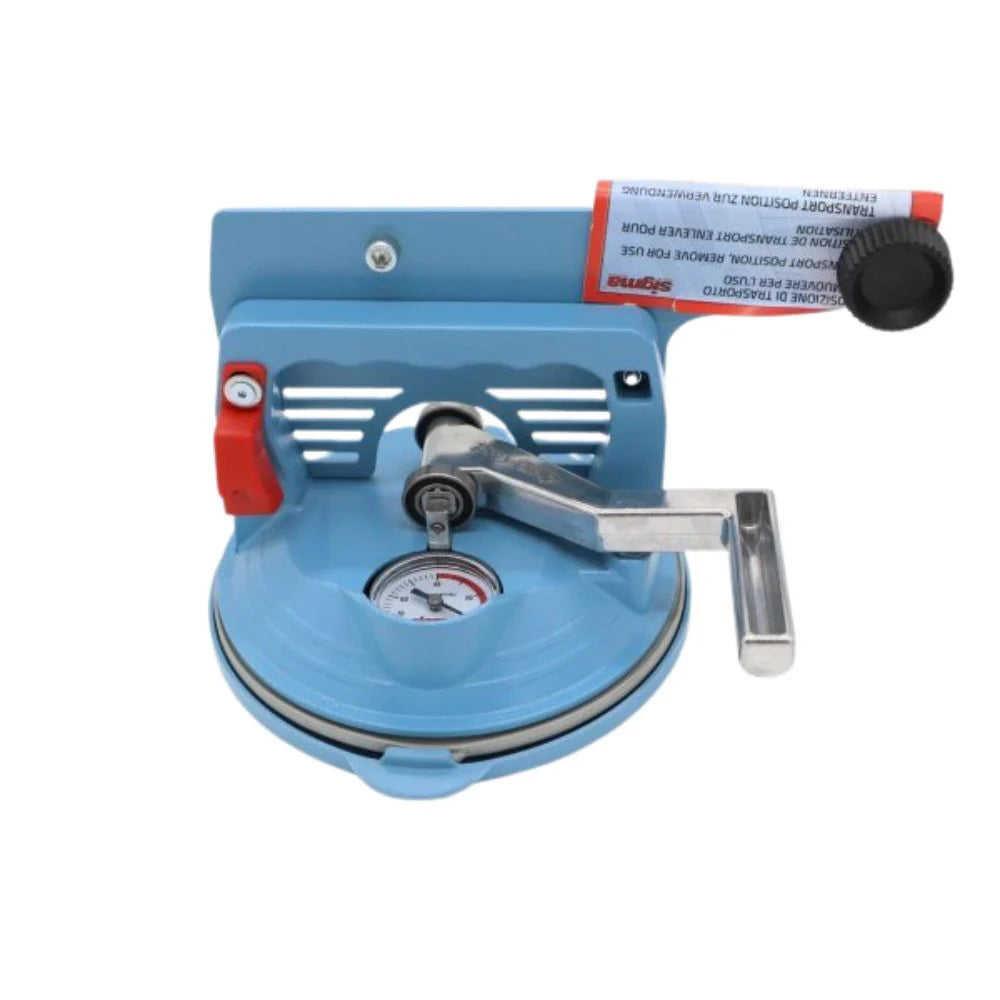

The Sigma 51M3 is the 160 mm Pro-Grip suction cup for the straight bars of the Sigma Kera-Lift 1A6 and 1D3 slab-handling frames. Pro-Grip is Sigma's lever-action mechanical cup: one movement pulls the vacuum in about a second, a protected gauge shows the grip at all times, and the tilting mount follows the flex of a long porcelain slab. It is the cup Sigma fits to the current Kera-Lift from new.
Use it for
- Replacing a damaged or worn cup on a Kera-Lift 1A6 (eight cups) or 1D3 (three cups)
- Lifting and carrying large format porcelain slabs on the Kera-Lift frame
Specifications
- Model: Sigma Art. 51M3
- Size: 160 mm diameter
- Mount: straight bar (longitudinal rail) of the Kera-Lift
- Vacuum gauge recessed and protected by the cup body
- Replaceable dual-lip non-marking rubber (Sigma 51M1)
- Release system that stops the cup sticking to the slab once the lever is opened
Fits
- Sigma Kera-Lift 1A6 (340 x 160 cm, 150 kg) and 1D3 (340 x 80 cm, 75 kg)
Good to know
- Cross-bar cups are a different part, the 51M4
- No routine maintenance; keep the rubber clean and check the gauge before each lift
-
