Sigma Pro Grip Suction Cup ART51M4 mm for cross bar of Kera Lift 160mm dia
Sigma
Sigma Pro Grip Suction Cup ART51M4 mm for cross bar of Kera Lift 160mm dia
Fits: Sigma Kera Lift (cross bar) See what fits
Pickup available at Excellent Tiling Services - Maddington
Usually ready in 24 hours
- Australia Post from $20Tracked post anywhere in Australia, priced by parcel weight: up to 250 g $9.95, 500 g $11.95, 1 kg $15, 3 kg $20. Or pick up free from Maddington.
- See it in the showroom17A Olga Road, Maddington WA 6109 · by appointment · Book a visit
- 30-day change-of-mind returnsUnused, uninstalled and in original packaging. Returns policy
- Questions about fit or finish?Call 0450 960 543 or send us a message.

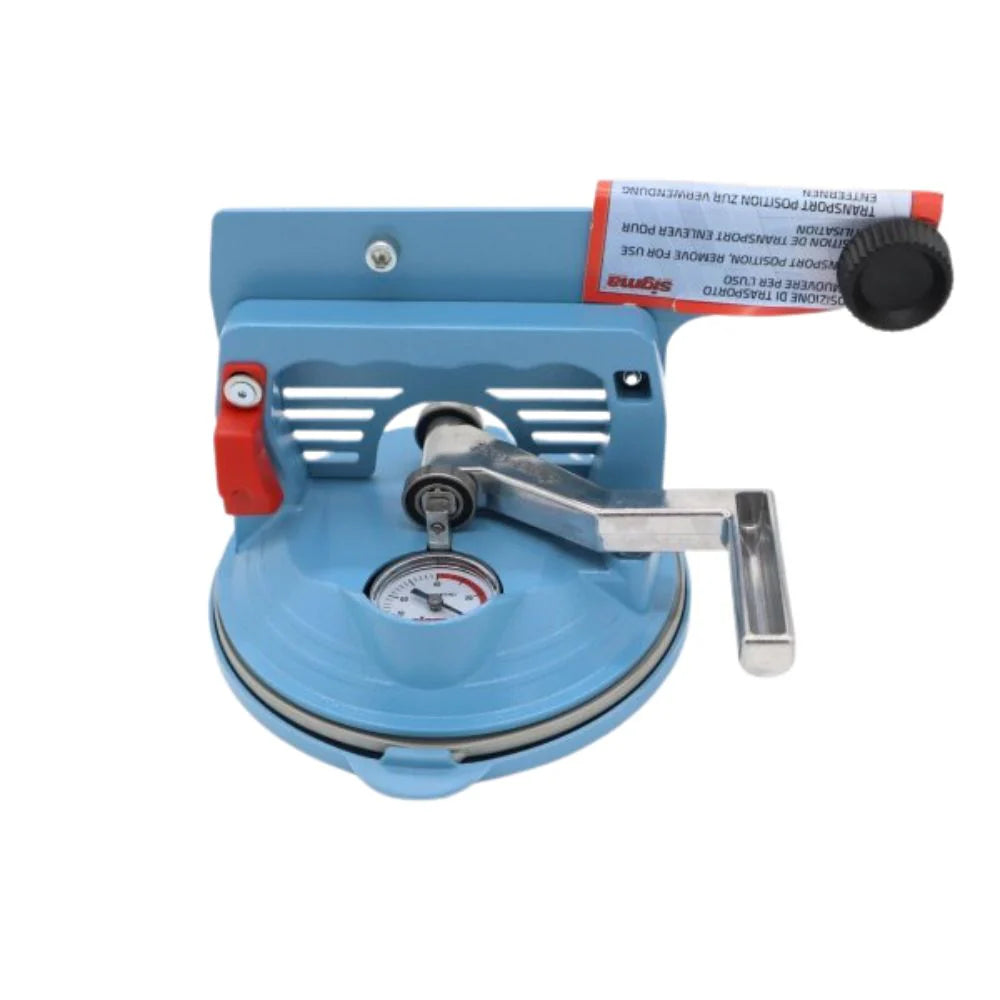

The Sigma 51M4 is the 160 mm Pro-Grip suction cup made for the cross bars of the Sigma Kera-Lift 1A6 slab-handling frame. It is the same lever-action mechanical cup as the 51M3 on the straight bars, with a protected vacuum gauge and tilting mount, but with the fitting that suits the cross-bar profile. One lever movement pulls the vacuum in about a second, and the gauge shows the grip the whole time the slab is in the air.
Use it for
- Replacing a damaged or worn cross-bar cup on a Kera-Lift 1A6

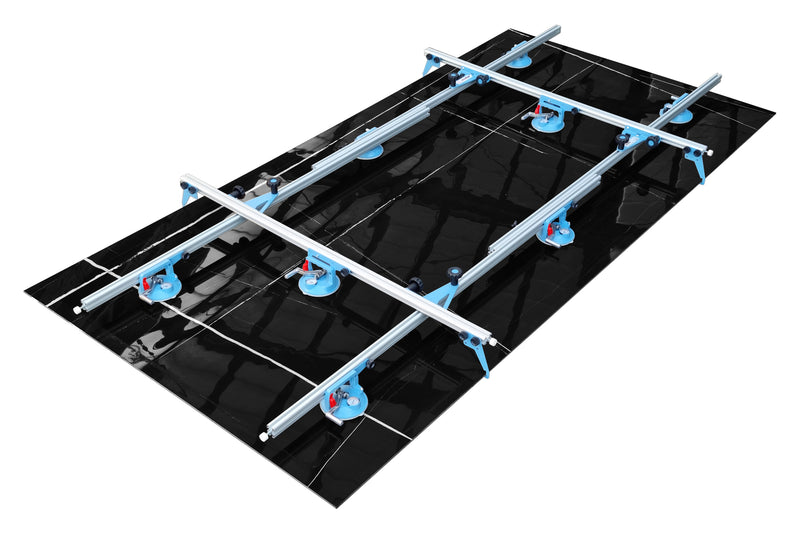

- Lifting and carrying large format porcelain slabs up to 340 x 160 cm on the frame
Specifications
- Model: Sigma Art. 51M4
- Size: 160 mm diameter
- Mount: cross bar of the Kera-Lift
- Vacuum gauge recessed and protected by the cup body
- Replaceable dual-lip non-marking rubber (Sigma 51M1)
- Release system that stops the cup sticking once the lever is opened
Fits
- Sigma Kera-Lift 1A6 cross bars (Sigma 103822 and 103824)
Good to know
- Straight-bar cups for the 1A6 and 1D3 are the 51M3, a different part
- Check the gauge on every cup before lifting; the frame is rated to 150 kg with all eight cups holding
-
