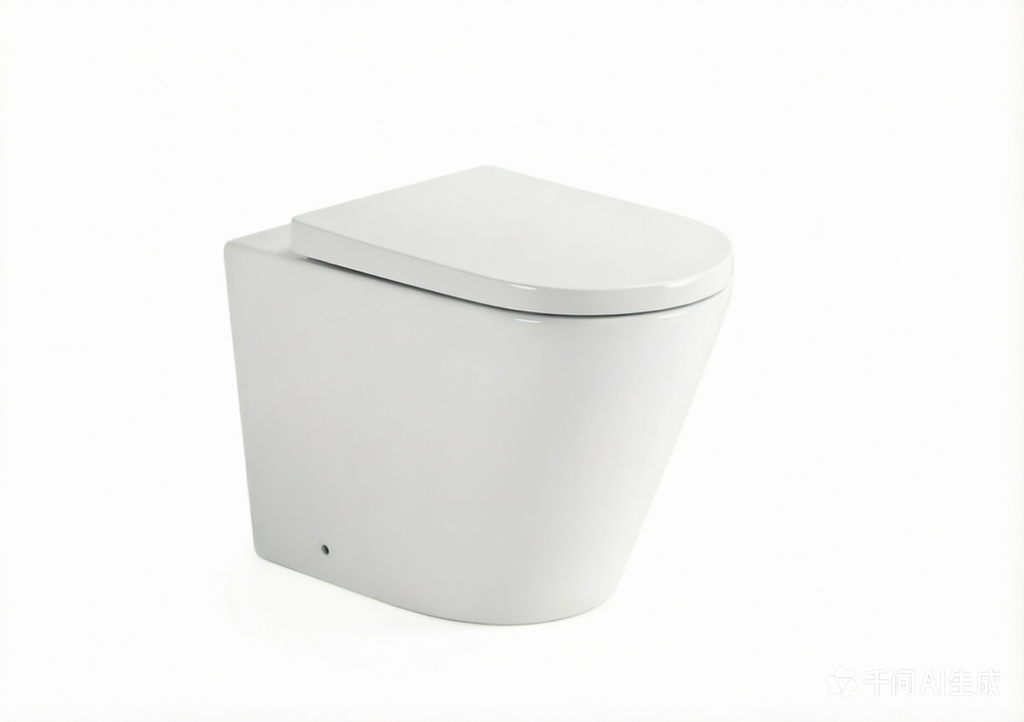

Caleb Aria Wall Faced Toilet with In-Wall Cistern
Excellent Tiling Services
Caleb Aria Wall Faced Toilet with In-Wall Cistern
Pickup available at Excellent Tiling Services - Maddington
Usually ready in 24 hours
- Perth metro deliveryLocal delivery options show at checkout, or choose free pickup from Maddington. Outside Perth? Ask for a freight quote.
- See it in the showroom17A Olga Road, Maddington WA 6109 · by appointment · Book a visit
- 30-day change-of-mind returnsUnused, uninstalled and in original packaging. Returns policy
- Questions about fit or finish?Call 0450 960 543 or send us a message.
The Caleb Aria is a wall faced floor pan that hides the cistern inside the wall, leaving only the pan and a flush plate on show. The rimless tornado flush washes the whole bowl with 3.4 litres on average, and the pan sits hard against the wall with no gap behind it to clean.
Use it for
- New bathrooms and renovations where the wall is being opened up
- Minimal, easy-clean bathrooms with a flat wall behind the toilet
- Pairing with a wall hung vanity for a floating look

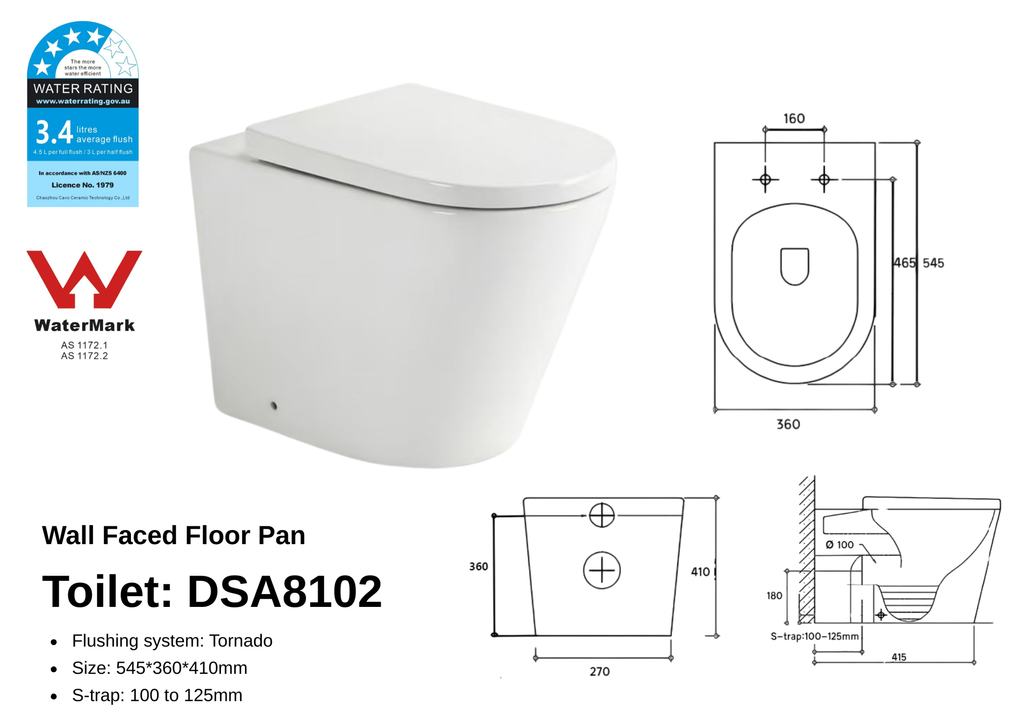

Specifications
- Model: DSA8102
- Pan size: 545 x 360 x 410 mm
- Trap: S-trap, 100 to 125 mm set-out
- Flush: rimless tornado, dual flush, WELS 4 Star: 4.5 L full / 3.1 L half / 3.4 L average
- WaterMark certified to AS 1172.1 and AS 1172.2
- Finish: white ceramic
- Soft close seat included
What's in the box

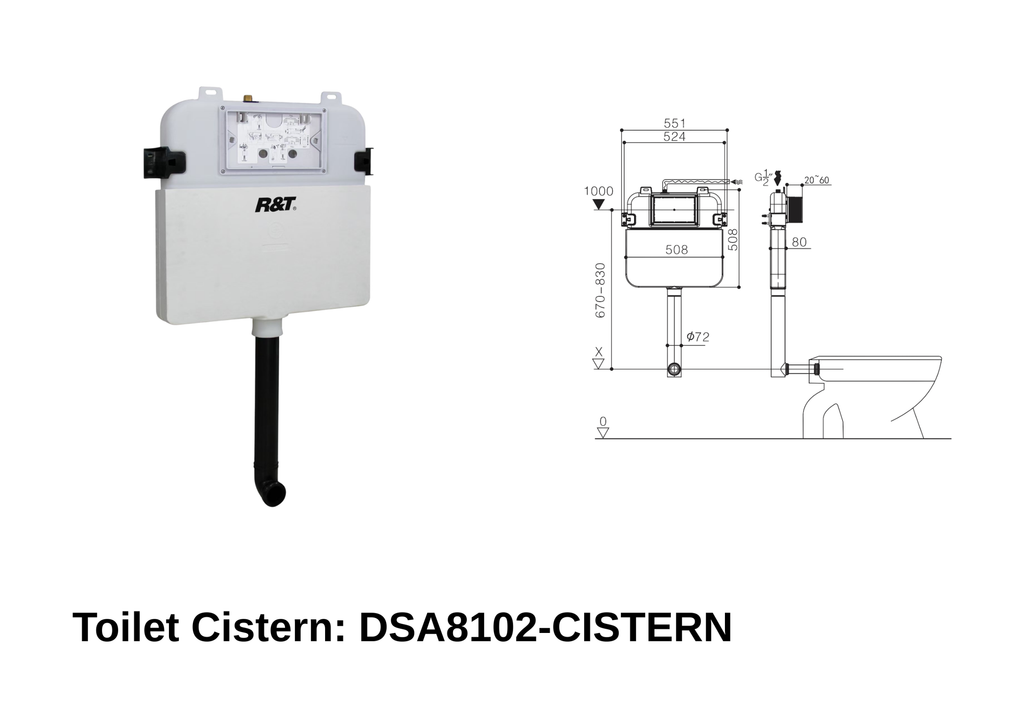

- Pan, seat and the matching in-wall cistern (DSA8102-CISTERN) with flush plate
Good to know
- The cistern needs a framed wall cavity; plan it before the wall is lined and tiled.
- Installation by a licensed plumber.
-
