Tile Insert Linear Drain – 76mm Outlet
Roberts Designs
Tile Insert Linear Drain – 76mm Outlet
Pickup available at Excellent Tiling Services - Maddington
Usually ready in 24 hours
- Australia Post from $24.95Tracked post anywhere in Australia, priced by parcel weight: up to 250 g $9.95, 500 g $11.95, 1 kg $15, 3 kg $20. Or pick up free from Maddington.
- See it in the showroom17A Olga Road, Maddington WA 6109 · by appointment · Book a visit
- 30-day change-of-mind returnsUnused, uninstalled and in original packaging. Returns policy
- Questions about fit or finish?Call 0450 960 543 or send us a message.
The Roberts Designs Tile Insert Linear Drain 76mm Outlet is a marine grade stainless steel linear drain that lets you tile a shower floor with a single fall to one wall, with no cuts to a point around a centre waste. A removable tray takes a strip of your own tile.
Use it for
- Walk in and hobless showers with a single fall
- Wet rooms and large format tile floors
- Alfresco and balcony drainage
Features
- Fully welded marine grade stainless steel
- Built in fall inside the channel towards the outlet
Specifications
- Width: 100mm
- Lengths: 800mm, 900mm, 1200mm or 1500mm
- Outlet: 76mm
- Material: Fully welded stainless steel (marine grade)
- Total height: 72mm
- Tray height: 29mm
- Tile insert height: 13mm
- Watermark: Yes
- Finishes: Stainless Steel, Matte Black, Gold, Brushed Copper or Brushed Gunmetal
- Model: RDXD1077 to RDXD1084 (Stainless, Matte Black), RDXD1096 to RDXD1107 (Gold, Brushed Copper, Brushed Gunmetal); see options for each length and finish code
Good to know
- Pick the length to suit the opening and the outlet to match the DWV pipe in the slab.
- Seal the membrane to the drain flange and finish the tile level with the frame.
- The grate or tray lifts out for cleaning.
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
-
Post from $9.95
-
Perth metro delivery on tiles & large items
-
Free pickup from Maddington
-
Trade accounts for builders & tilers
-
Showroom by appointment · Mon–Sat 4:30–9 pm
-
Advice from our team · 0450 960 543
Details & specifications
Need help choosing or confirming fit? Talk to our Maddington showroom or call 0450 960 543.
Specifications
- Brand
- Roberts Designs
- Product type
- Designer Bathroom Accessories
- Length
- 800mm, 900mm, 1500mm, 1200mm
- Colour
- Brushed Copper, Brushed Gunmetal, Matte Black, Gold, Stainless Steel
| Option | Product code | Barcode |
|---|---|---|

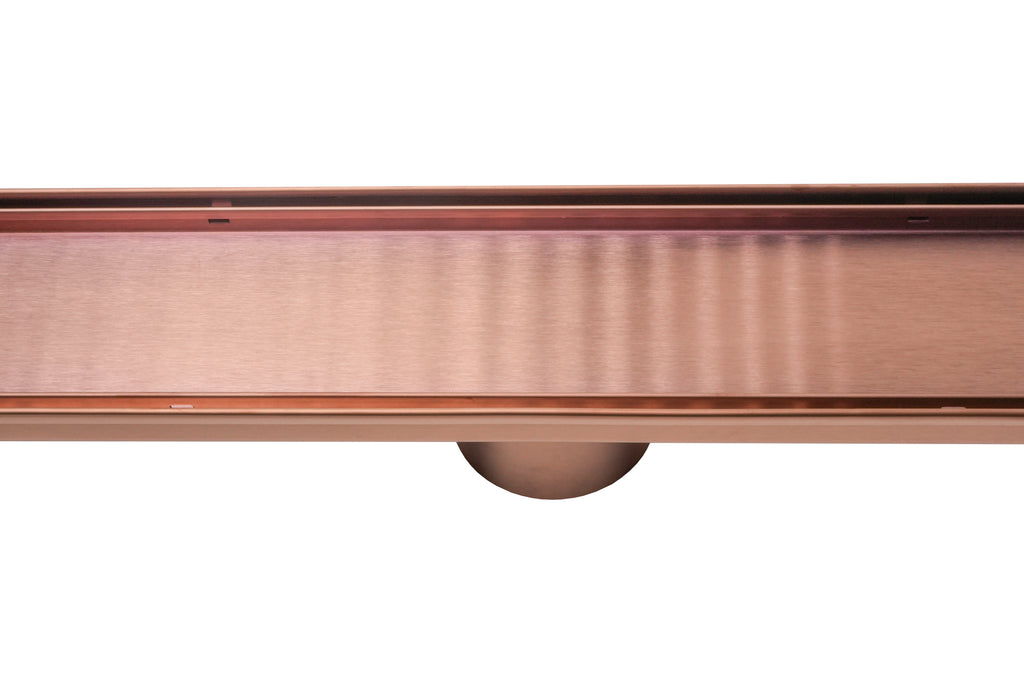

| 800mm / Brushed Copper | RDXD1102 | |

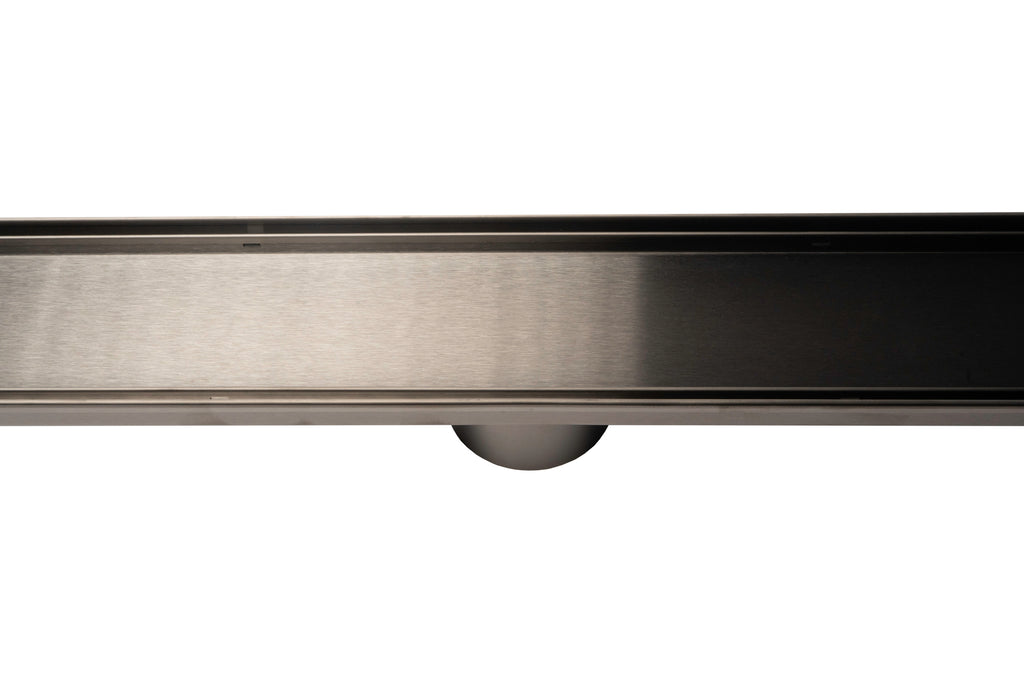

| 800mm / Brushed Gunmetal | RDXD1106 | |

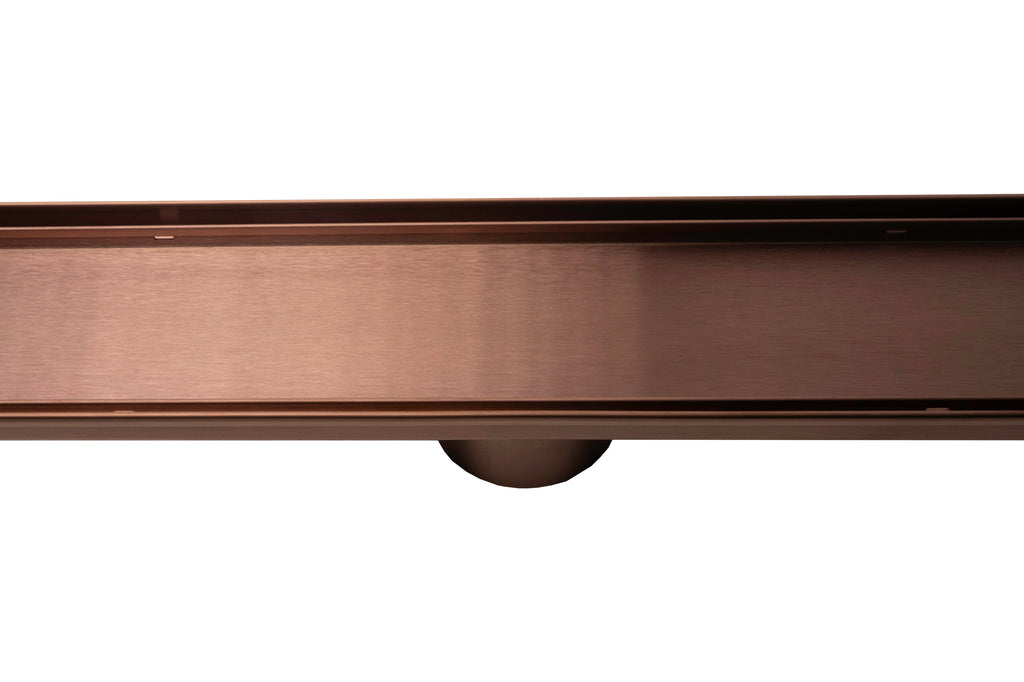

| 900mm / Brushed Copper | RDXD1103 | |

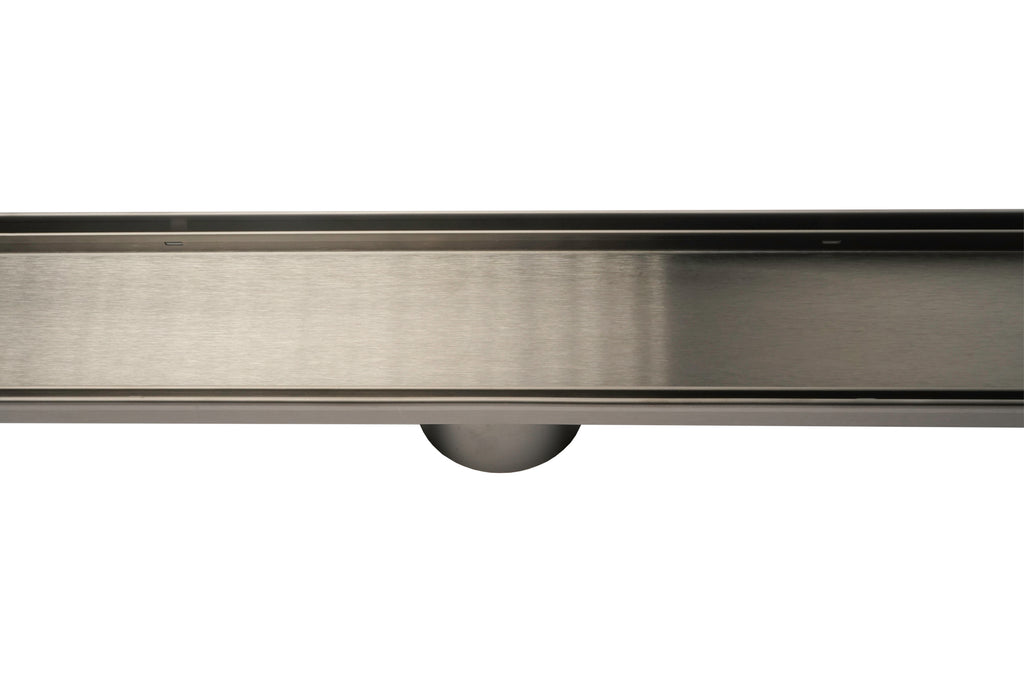

| 900mm / Brushed Gunmetal | RDXD1107 | |

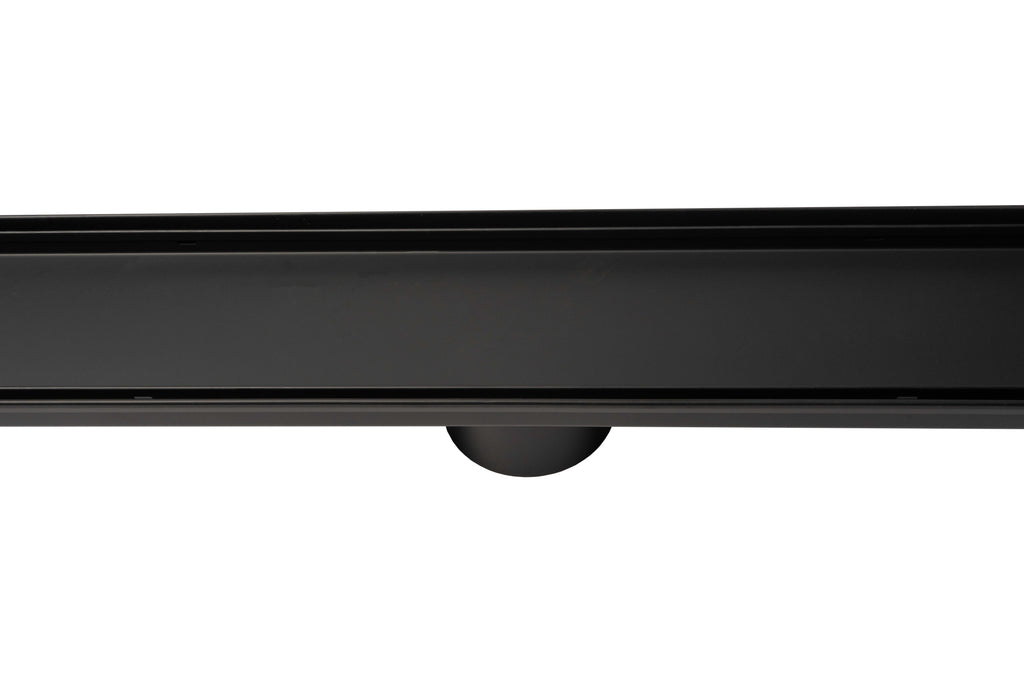

| 1500mm / Matte Black | RDXD1084 | |
| 1500mm / Gold | RDXD1099 | |

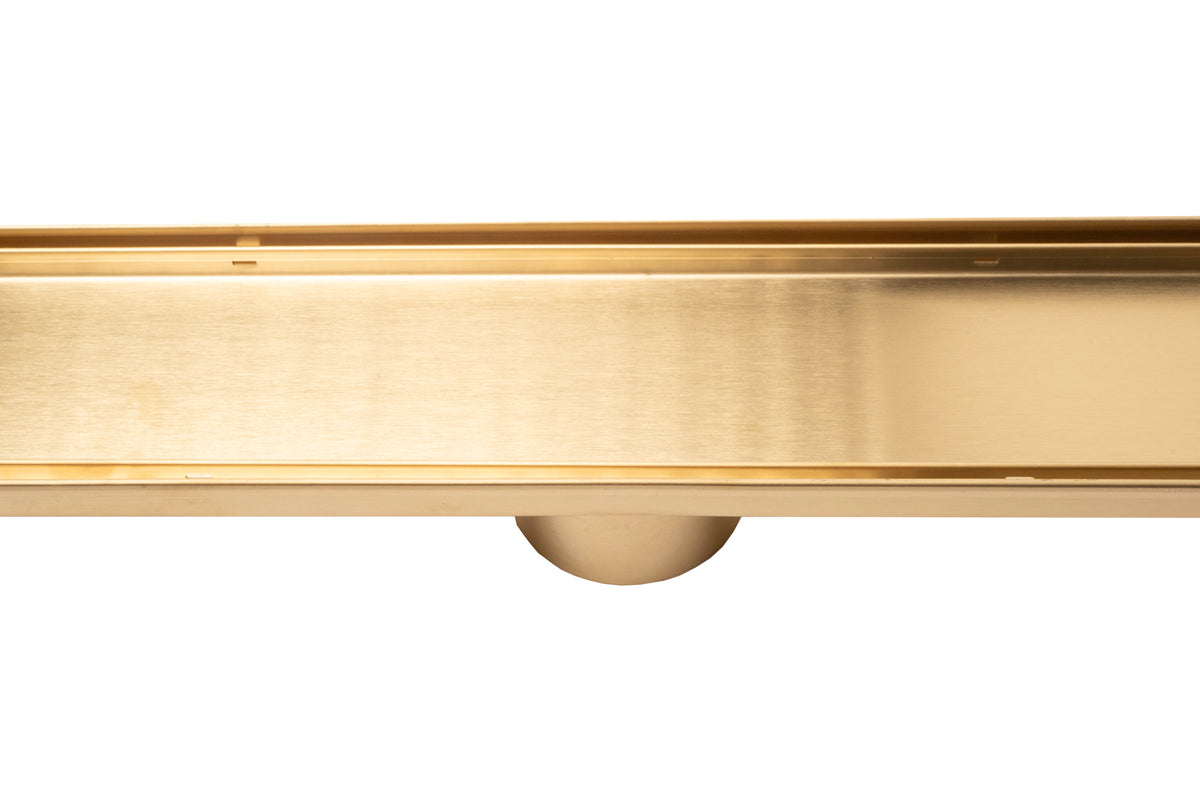

| 1200mm / Gold | RDXD1098 | |

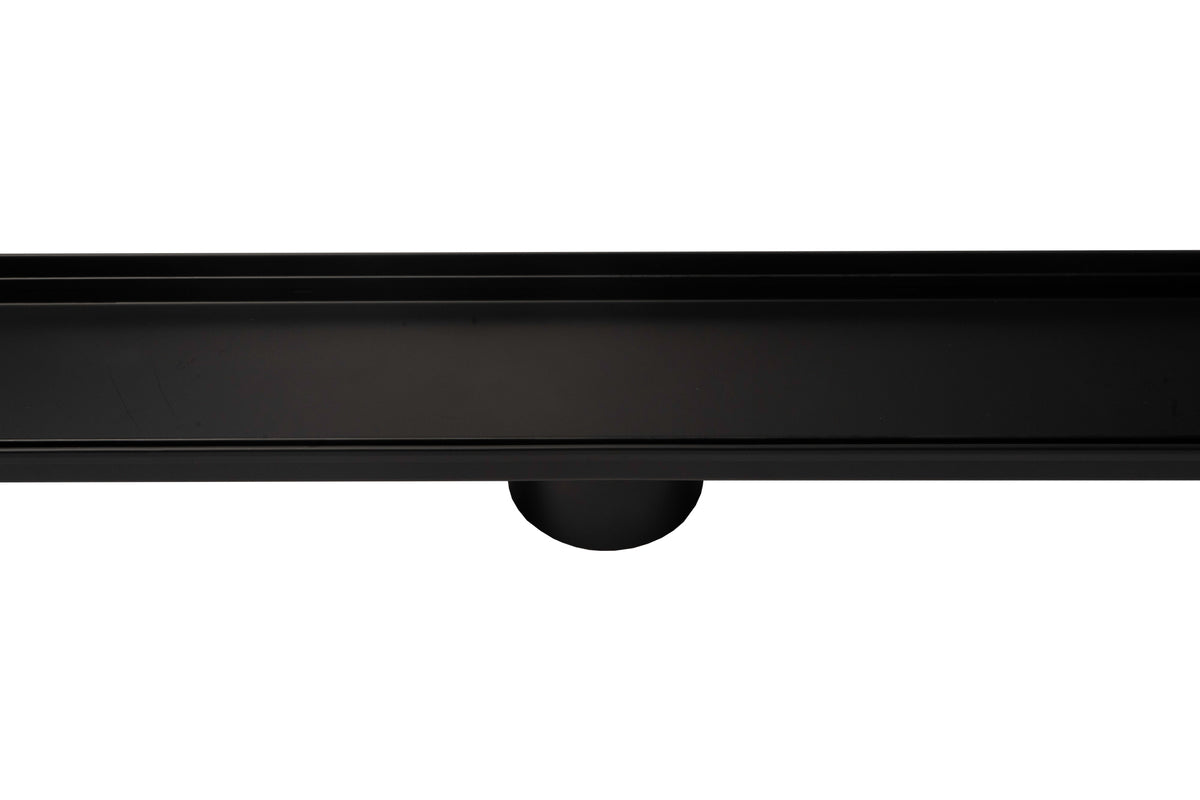

| 1200mm / Matte Black | RDXD1083 | |

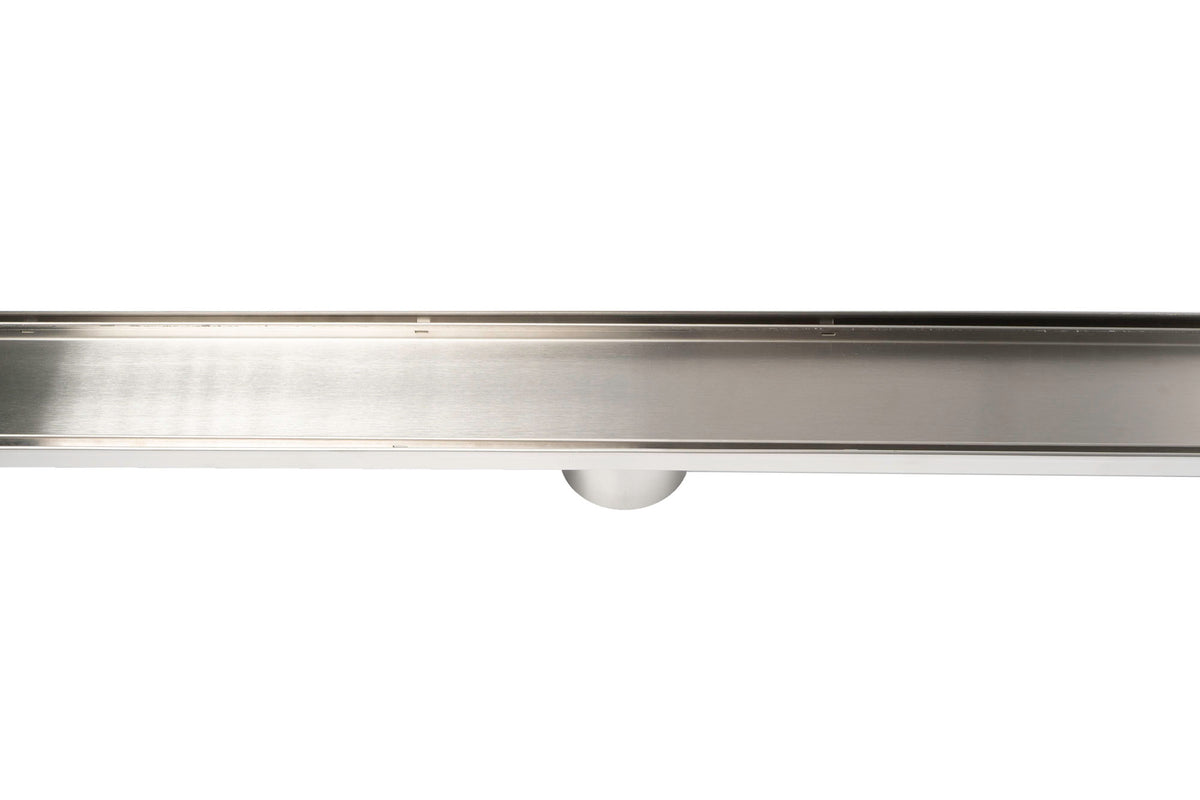

| 1200mm / Stainless Steel | RDXD1079 | |

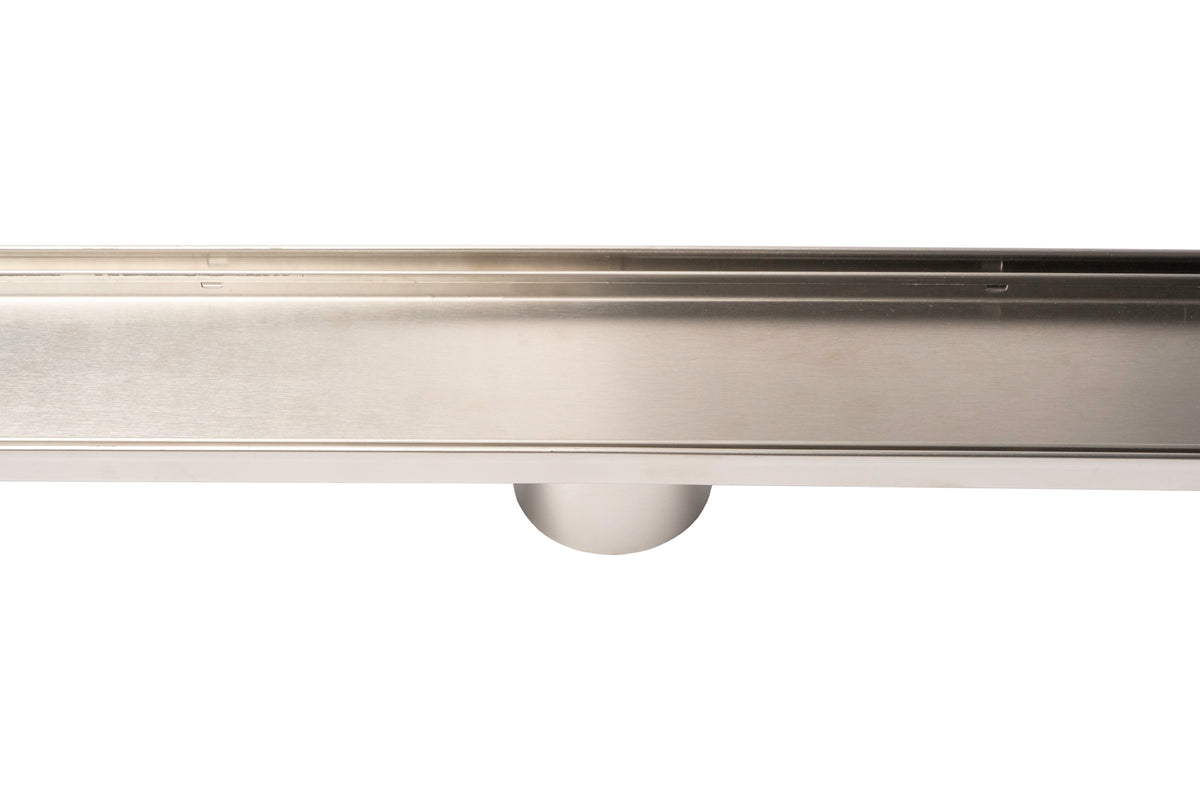

| 1500mm / Stainless Steel | RDXD1080 | |

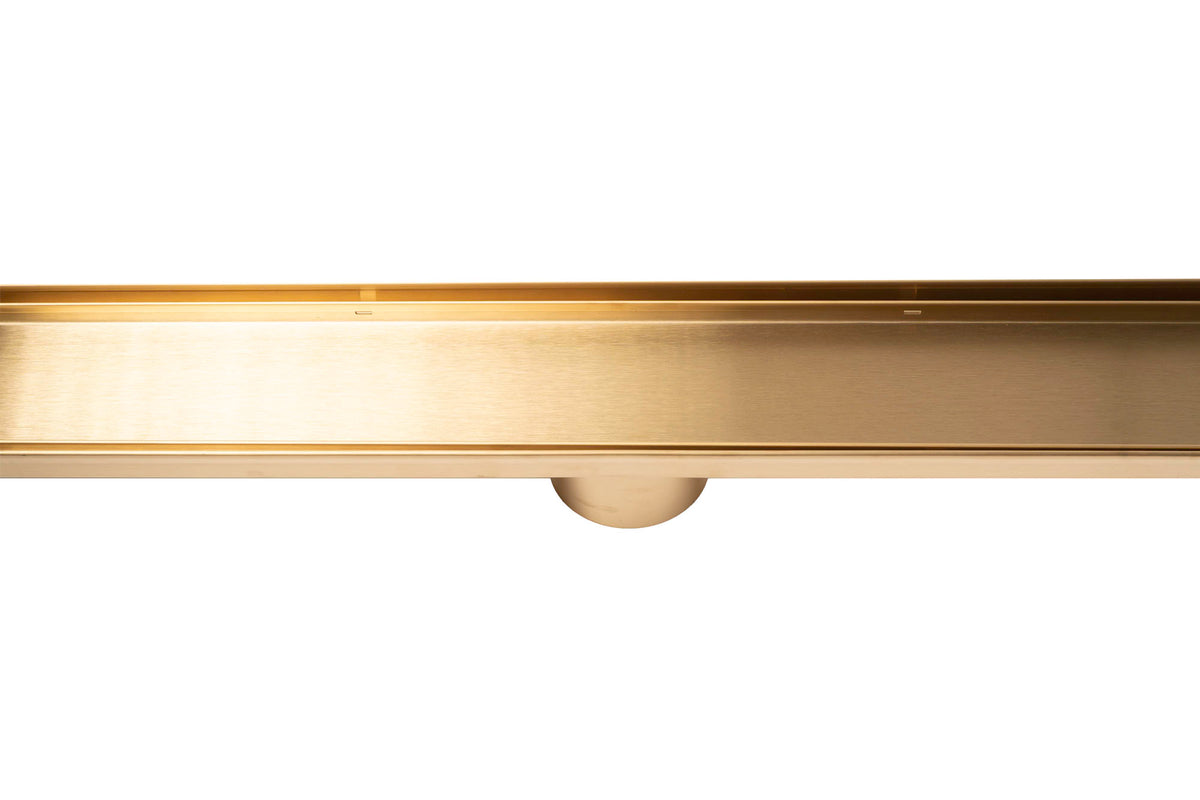

| 800mm / Gold | RDXD1096 | |

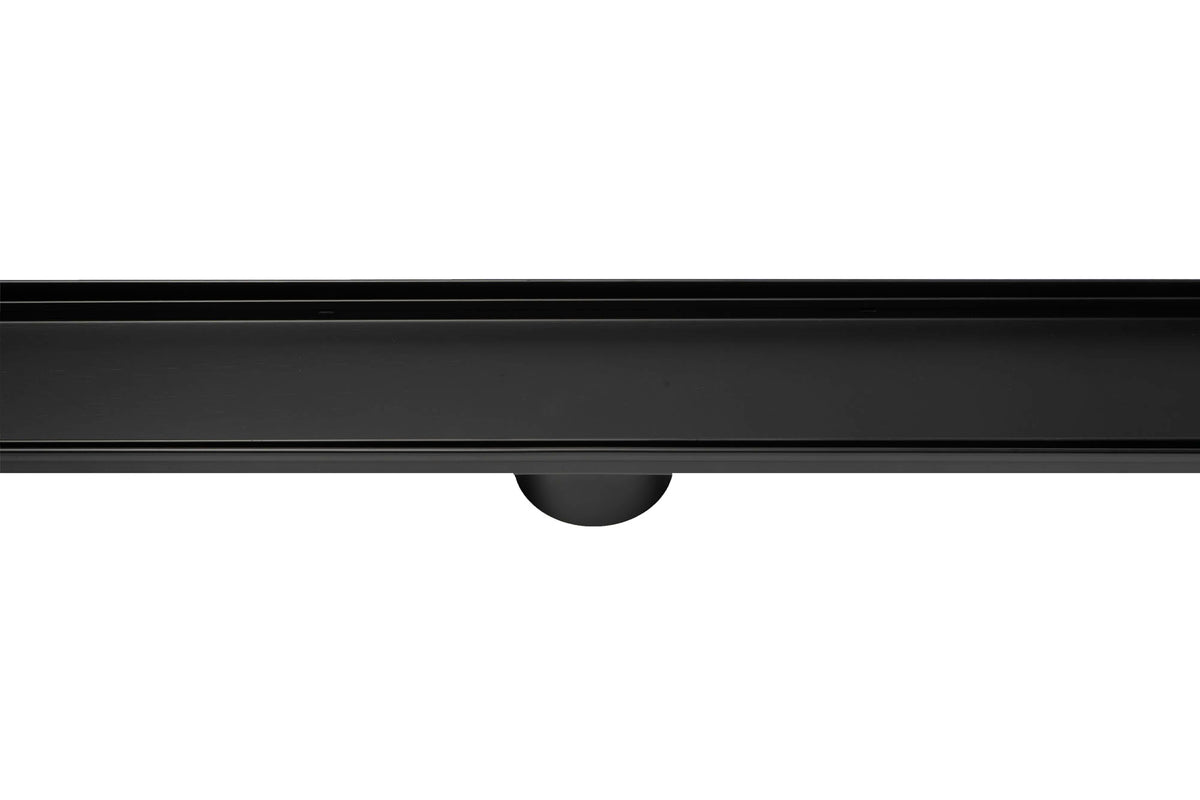

| 800mm / Matte Black | RDXD1081 | |

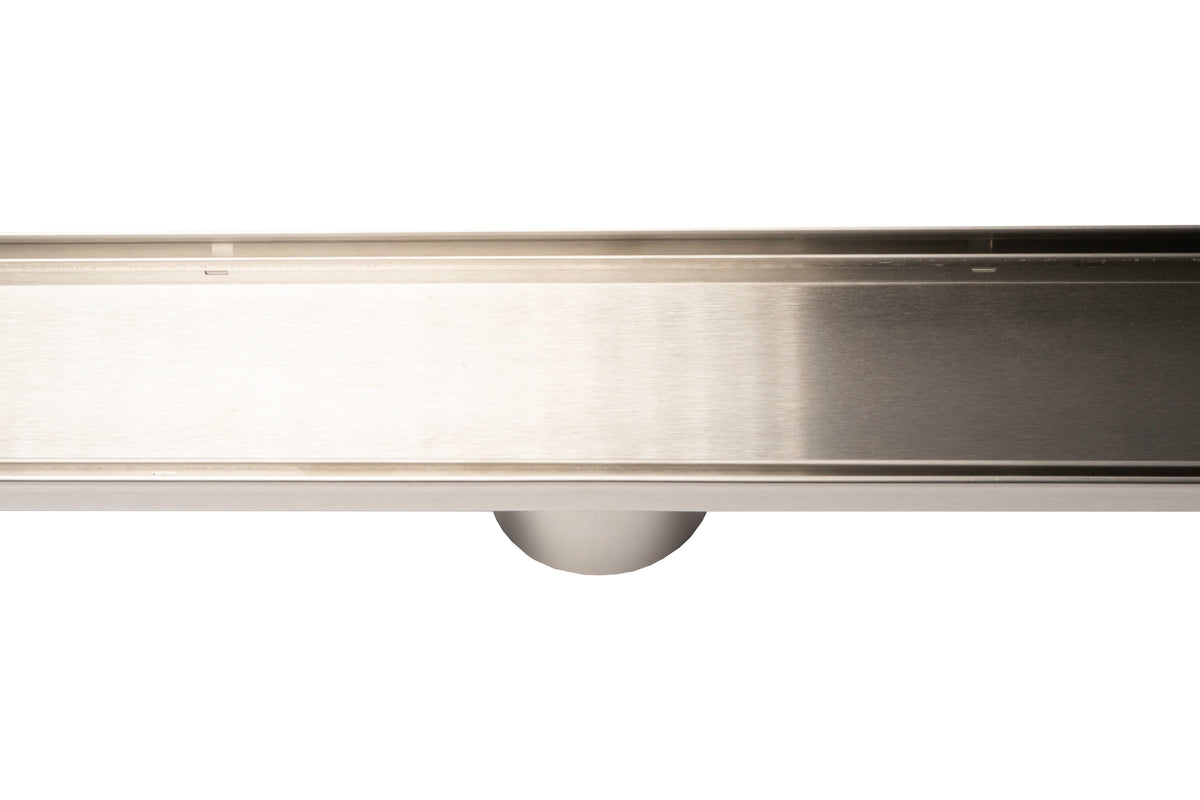

| 800mm / Stainless Steel | RDXD1077 | |

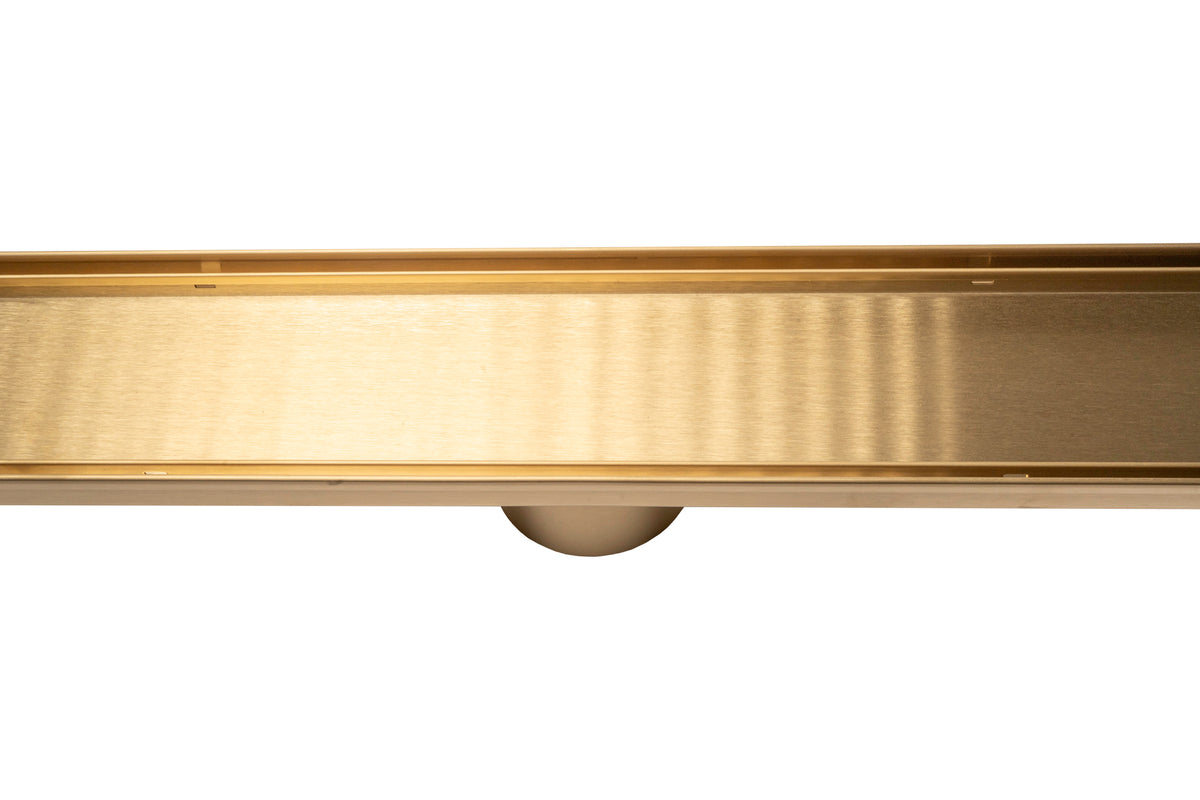

| 900mm / Gold | RDXD1097 | |

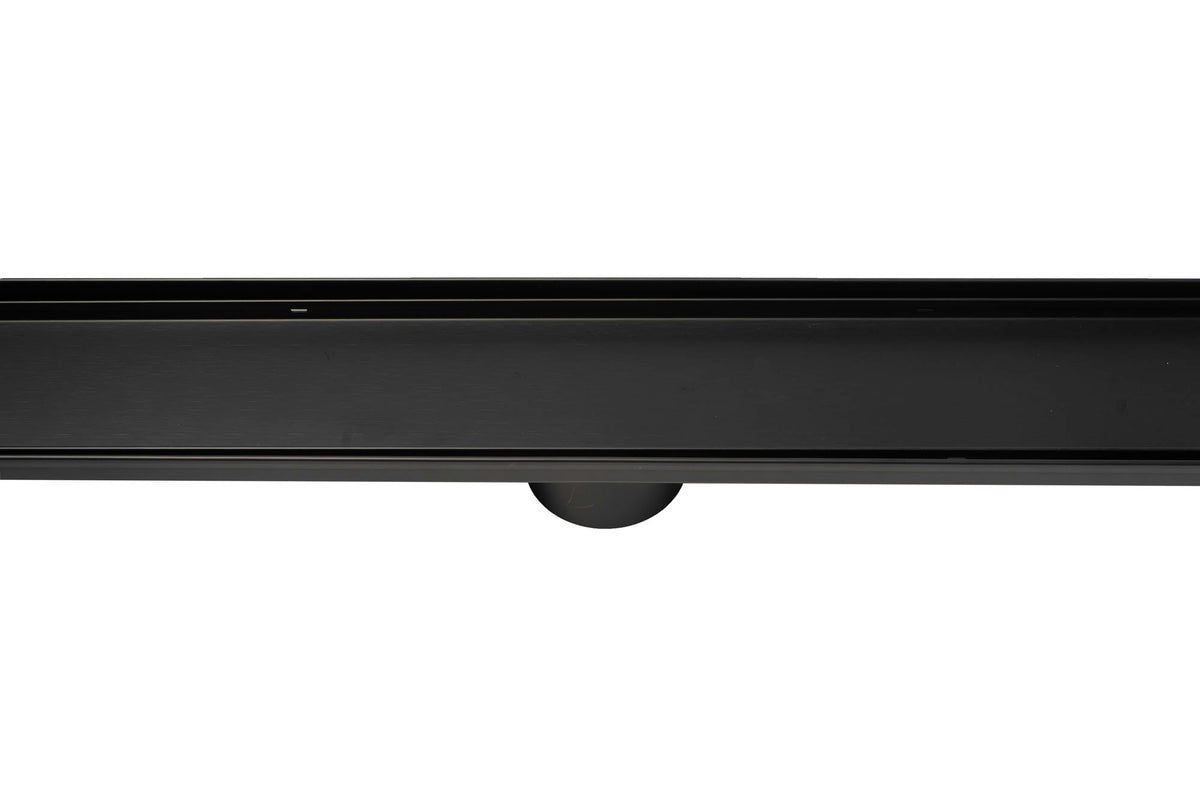

| 900mm / Matte Black | RDXD1082 | |

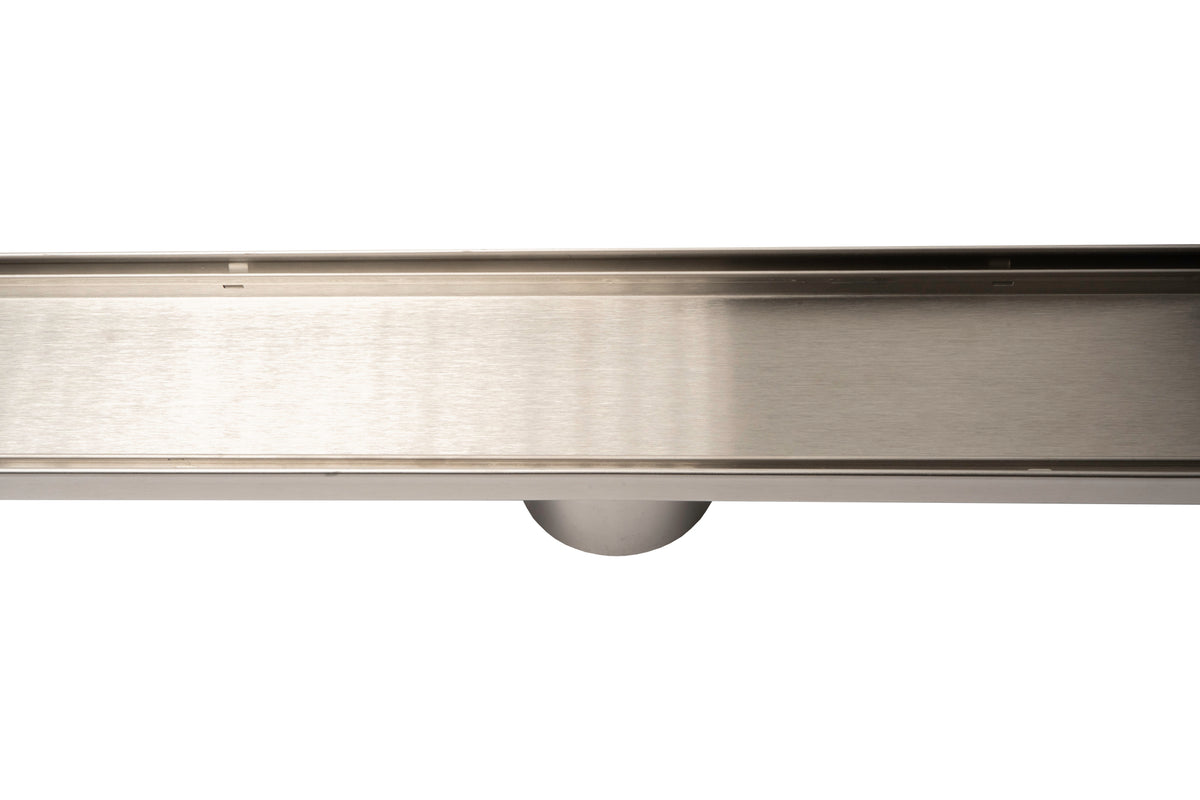

| 900mm / Stainless Steel | RDXD1078 |
