Raimondi Zoe Advanced Bridge Wet Saw 3HP - 85A, 105A, 130A, 155A

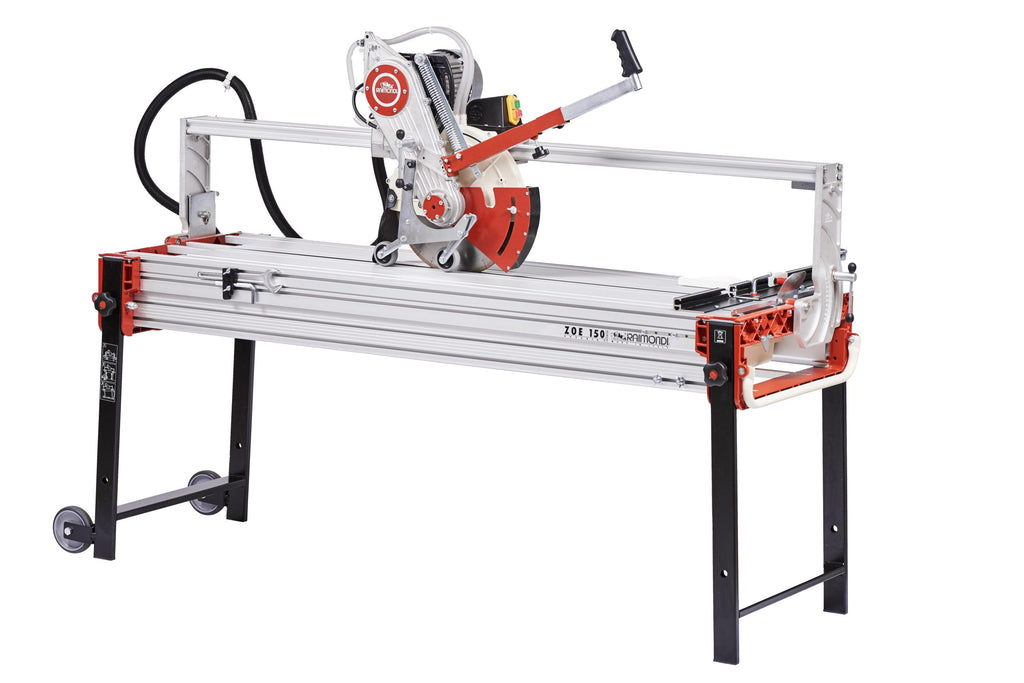

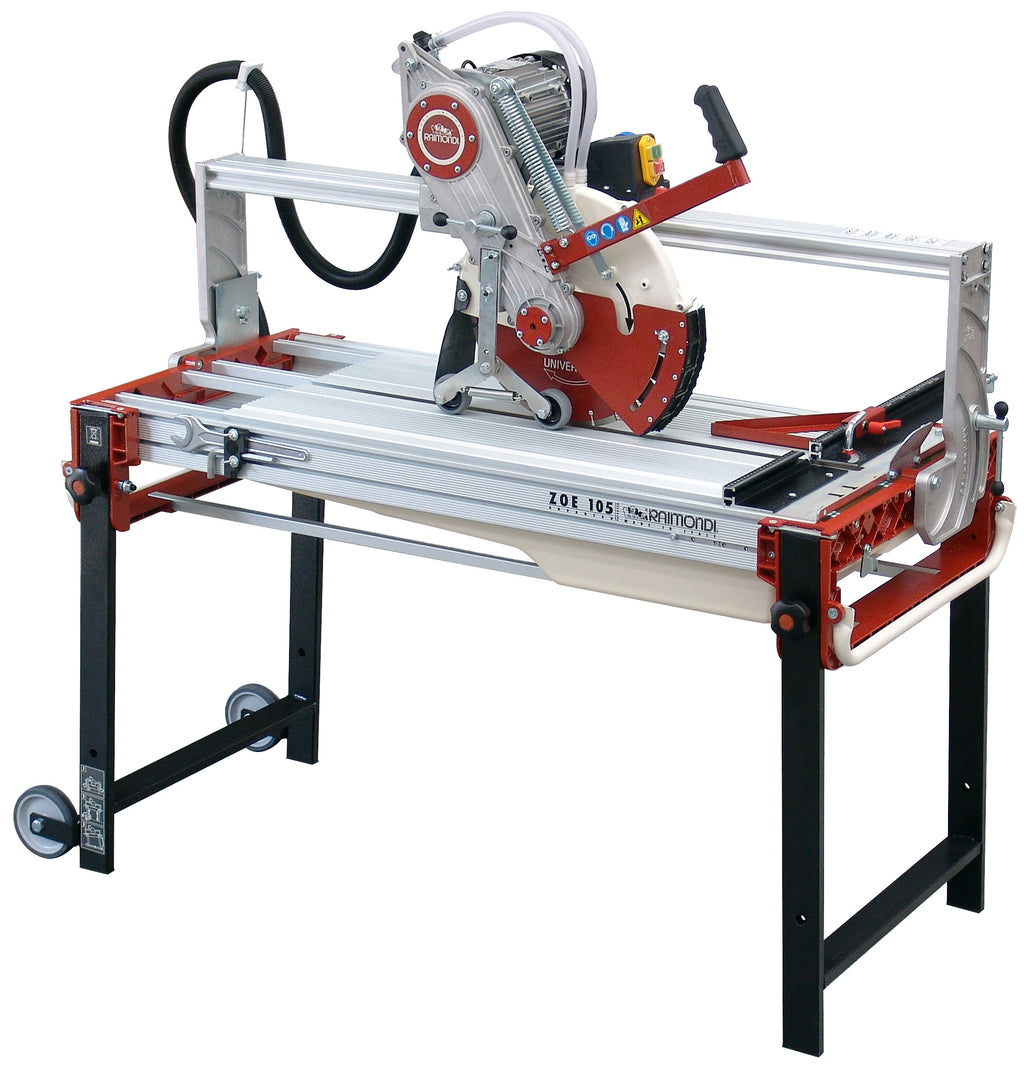

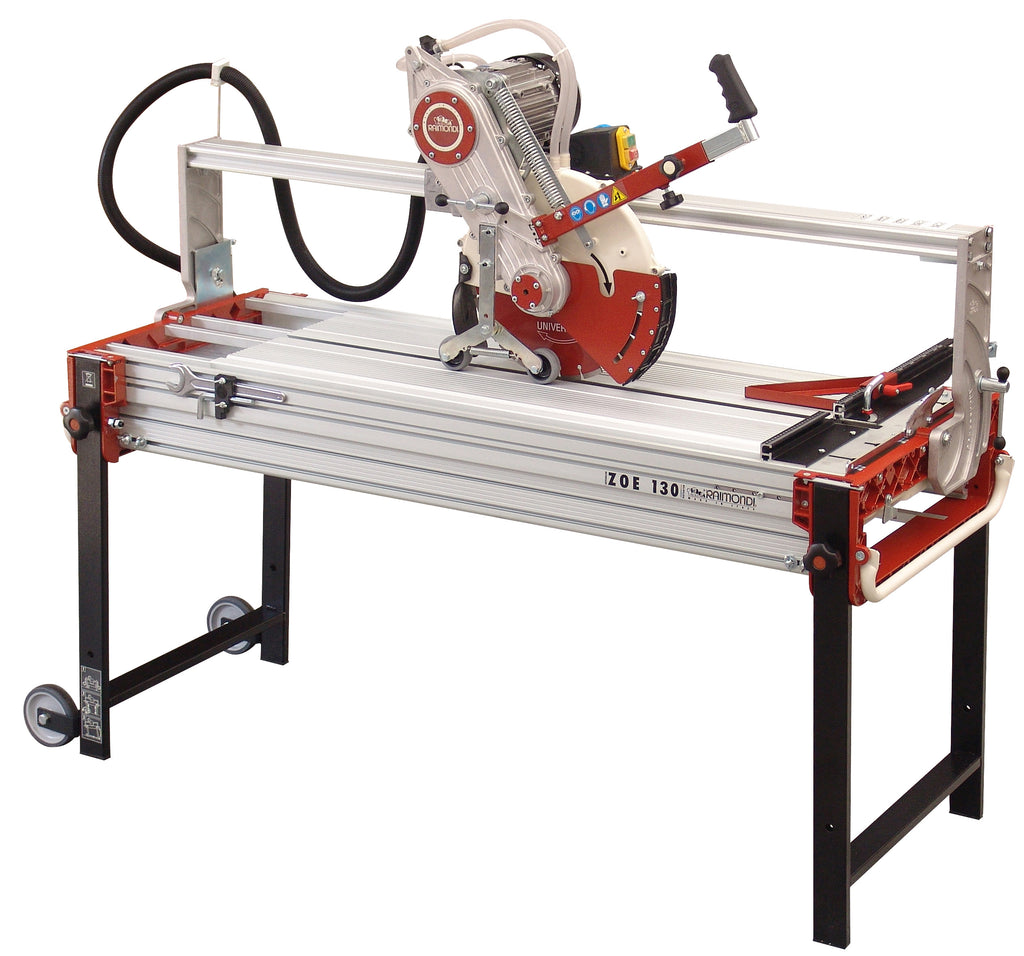

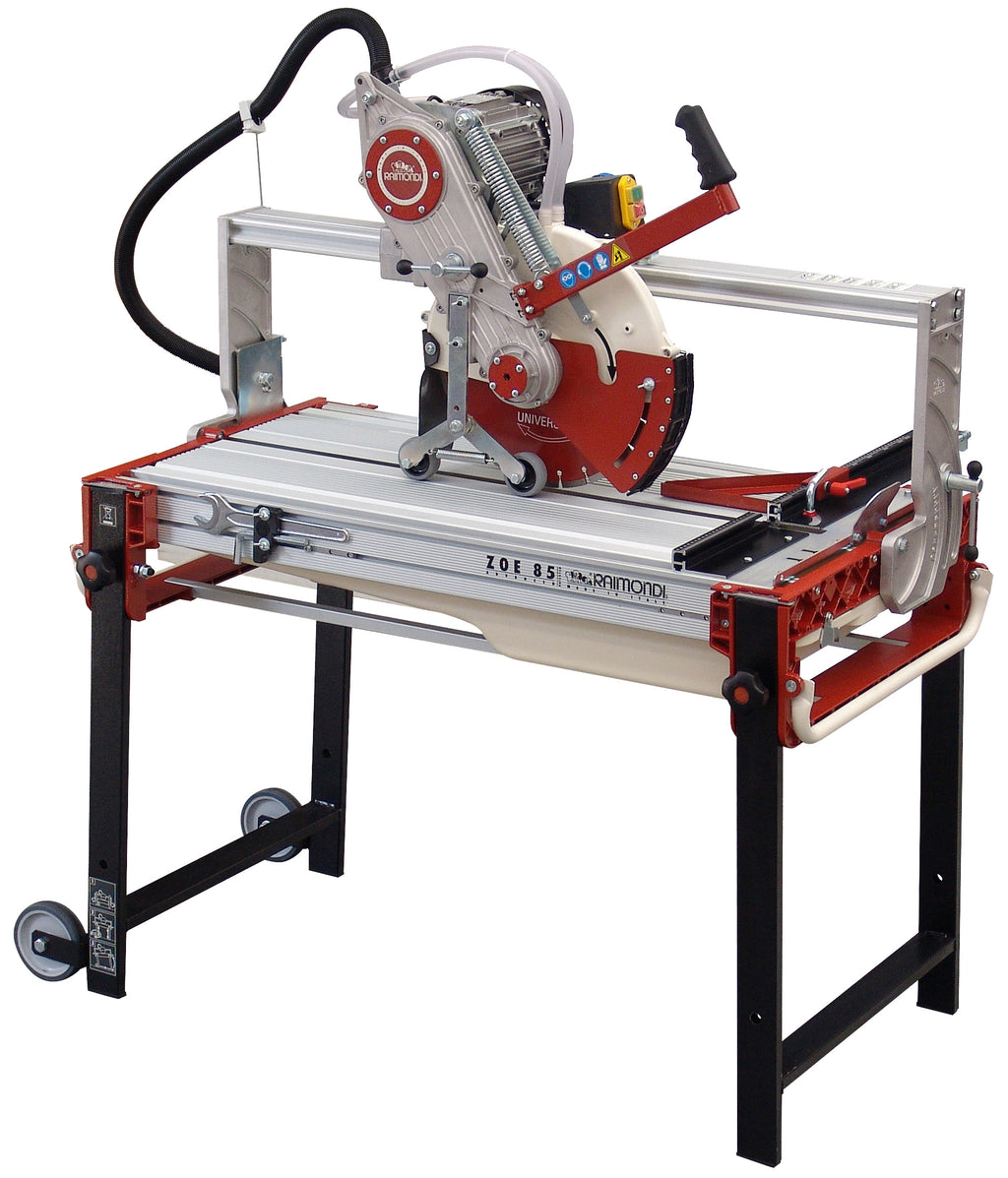

Raimondi Zoe Advanced bridge wet saw with a 3 HP (2.2 kW) single-phase motor, for straight and 45° mitre cuts in porcelain, granite, marble, bricks and pavers. Four cutting lengths: Zoe 85A (85 cm), 105A (105 cm), 130A (130 cm) and 155A (155 cm, Raimondi's ZOE 150 ADV).

• Blades: 300, 350 or 360 mm diameter, 25.4 mm bore. Raimondi supplies it with a 300 mm porcelain blade.
• Depth of cut: 80 mm with a 300 mm blade, 110 mm with a 350 mm blade, 120 mm with a 360 mm blade, up to 235 mm in two passes
• Tilting motor assembly for bevel cuts from 0° to 45°, adjustable cutting depth, belt drive
• Sliding motor carriage on an extruded aluminium rail with four adjustable double-bearing pulleys
• Pivoting, floating blade guard; heavy-duty water pump with two jet nozzles; removable 38 L tank
• Telescopic legs with an anti-collapse safety catch; cast and extruded aluminium frame
• Diagonal cuts: tiles up to 60 x 60 cm on the 85A and 109 x 109 cm on the 155A
• In the box: 300 mm porcelain blade, wheel kit, tile pressure device, key kit, wrench and manual
• Weight: 85A 80 kg (98 kg packed), 155A 106 kg (147 kg packed)

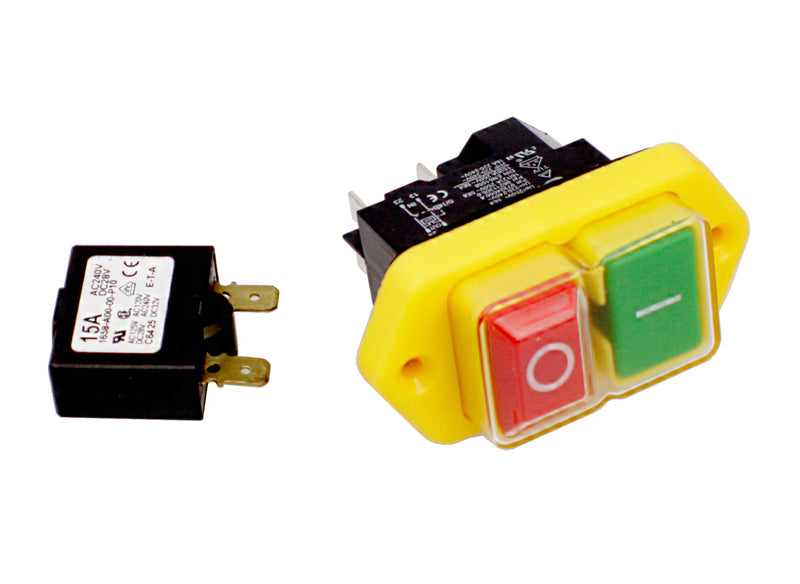

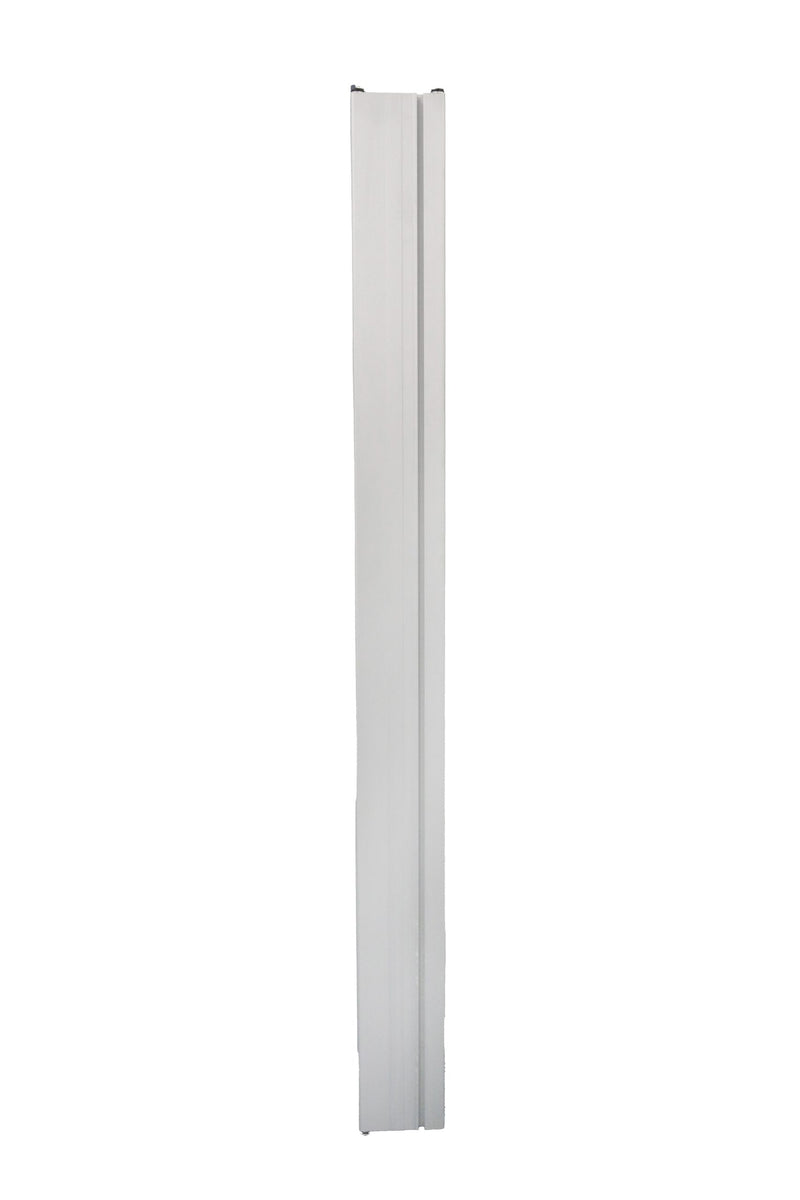

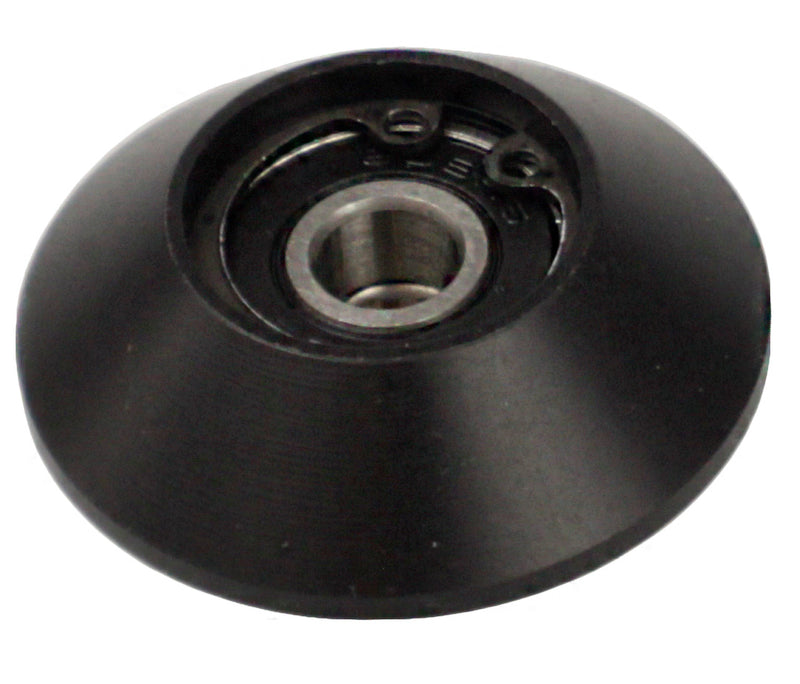

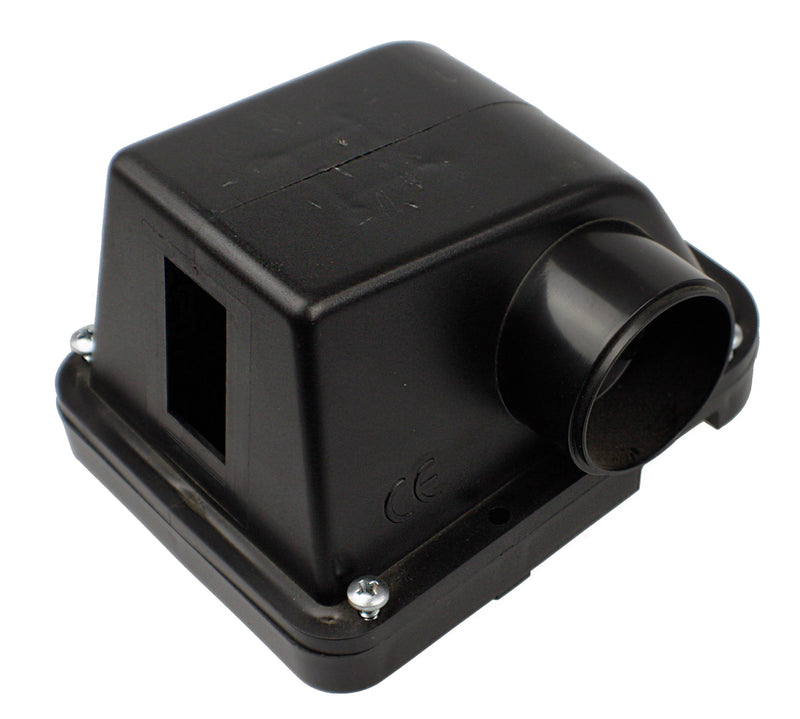

What fits this saw: the folding extension table kit, extension side square, telescopic counter square, 5 roller extension table, 90° and 45°/90° sliding squares and the tile holding device (105A, 130A and 155A sizes) all fit every Zoe Advanced, as do Raimondi's 300 mm and 350 mm diamond blades. Spares: aluminium rails (85A, 105A, 130A), switch and overload, switch base and cover, bearing and nylon bush, and a 10 A plug and lead. They are all in our Raimondi wet saw accessories collection.

Codes: RAI-ZOE85A, RAI-ZOE105A, RAI-ZOE130A, RAI-ZOE155A
